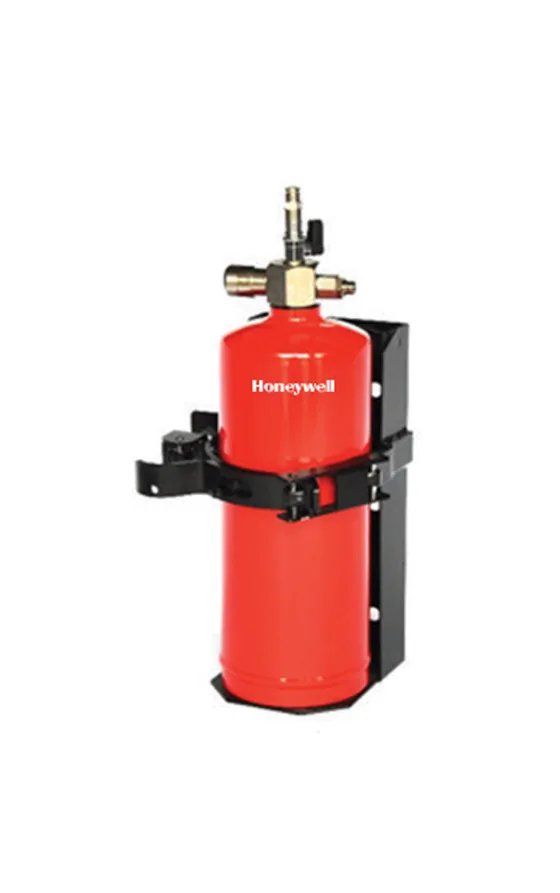

Dealer for HoneywellPre-engineered, automatic In-Direct Low Pressure systems supplied as kits with their main accessories and filled with FK-5-1-12 clean agent. Three sizes: ECS-300ILP (1.36 kg), ECS-700ILP (3.18 kg) and ECS-1400ILP (6.35 kg).
Standards and approvals: UL Listed, NFPA 2001
| Item | Model | Pressure (service / max / test) |
|---|---|---|
| ECS-300ILP | ||
| ECS-300ILP | ||
| ECS-300ILP | 240psi (16.5Bar) | |
| ECS-300ILP | ||
| ECS-700ILP | ||
| ECS-700ILP | ||
| ECS-1400ILP | ||
| ECS-1400ILP |
| Specification | Details | Details | Details | ECS-300ILP | Details | ECS-700ILP | Details | ECS-1400ILP |
|---|---|---|---|---|---|---|---|---|
| Cylinder valve Assembly | 1 | 1 | 1 | |||||
| FK-5-1-12 | 3Lbs / 1.36Kgs | 7Lbs / 3.18Kgs | 14Lbs / 6.35Kgs | |||||
| Cylinder Mounting Bracket | 1 | Painted Steel | 1 | 1 | ||||
| EOL Adapter with Gauge | 1 | 1 | 1 | |||||
| Rubber Grommets | 4 | 4 | 4 | |||||
| Plastic Loop Clamps | 25 | 25 | 25 | |||||
| Chemical Formula | CF3CF2C(0)CF(CF3)2 | |||||||
| OZONE Depletion Potential | 0.0 | |||||||
| Global Warming Potential | 1 | |||||||
| Atmospheric Lifetime (Years) | 0.014 (5 days) | |||||||
| SNAP | Yes | |||||||
| Cylinder Material | Painted Steel | |||||||
| Operating Pressure | 240psi (16.5Bar) | |||||||
| Valve Material | Nickel Plated Brass | |||||||
| Primary Seals (membrane) | Special Polymer | |||||||
| Screw-in Connections | Brass with NBR seals | |||||||
| Secondary Seals | NBR, Hybrid seal metal nitrile | |||||||
| Valve outlets | ¼” NPT, ½” NPT | |||||||
| Pressure Gauge Connection | 1/8” NPT | |||||||
| Leakage Rate | .0001 mbar I/s | |||||||
| Cylinder Diameter | 74 | 126 | 156 | |||||
| Cylinder Height | 316 | 284 | 360 | |||||
| ECS -Cyl Height w/ Valve assy BST | 425 | 415 | 498 | |||||
| Valve ring diameter | 40 | 40 | 40 |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
Sizes: 1.13 kg, 2.27 kg, 4.54 kg
Direct Low Pressure kits filled with FK-5-1-12 clean agent and a heat detection tube that runs inside the cabinet. Three sizes: ECS-250/252 (1.13 kg), ECS-500/502 (2.27 kg) and ECS-1000/1002 (4.54 kg).
Sizes: 2 kg, 5 kg, 10 kg, 15 kg
Pre-engineered, retrofittable suppression system built from ceiling mounted agent containers in 2, 5, 10 and 15 kg, linked to detectors and a control panel. It comes with Fluoroketone (FK) clean agent or ABC powder MAP 90, and all units fire together for total flooding.
A small self actuating Fluoroketone (FK) unit for enclosed micro environments, released mechanically by a heat sensitive glass bulb with no power supply. The Intuitive version sits inside the space; the Adaptive version sits outside with only its bulb inside, for spaces too small to hold the unit.
Sizes: 2, 4, 6 kg
Pre-engineered clean agent system for electrical cabinets, server racks and wind turbine alternator zones, where the UL listed detection tube both senses the fire and delivers the agent at the source. Available in 2, 4 and 6 kg cylinders with FE-36 (HFC-236fa), FK-5-1-12 or FM-200 (HFC-227ea).
Sizes: 2, 4, 6 kg
Indirect clean agent system for CNC and EDM machines, dry type transformers, DG sets, fume hoods and wind turbines: the red detection tubing only senses the fire and large nozzles then flood the work zone with clean agent. Offered in 2, 4 and 6 kg cylinders.
Sizes: 2 kg, 4 kg
Self-actuating, pre-engineered clean agent system for enclosed panels and cabinets, developed and made by Gunnebo India. A pressurised heat sensing tube ruptures at the fire and releases Grenoz 1230 at the point where the fire starts.
Sizes: 10 kg
Automatic clean agent system for small unmanned rooms such as server, UPS, battery and record rooms. A ceiling mounted 10 kg Grenoz 1230 cylinder discharges when point detectors and a fire alarm panel trigger its electrical actuator.
