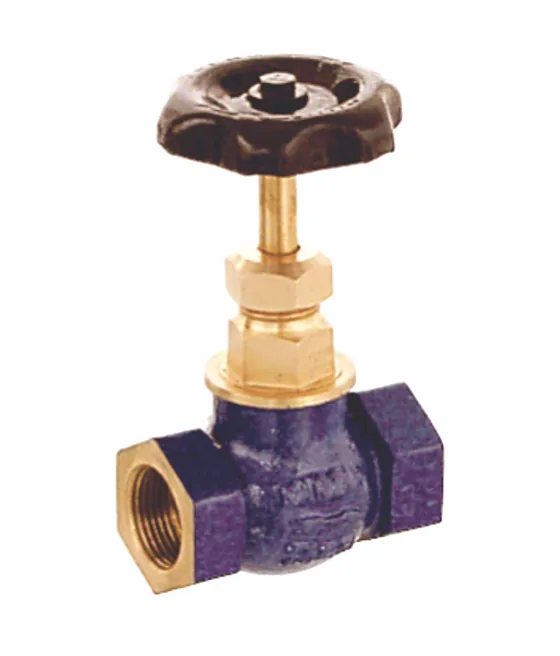

Authorised distributor for Kartar ValvesKartar Valves Gunmetal Globe Valve, IS 778 (K604, K604-E, K606)
A gunmetal (bronze) globe valve made to IS 778 in PN1.0 (CI-I), used to shut off or regulate flow: K604 with screwed ends and K606 with flanged ends from 15 mm to 100 mm, and the K604-E wheel valve from 15 mm to 50 mm.
- Gunmetal (bronze) body
- Screwed ends (K604, K604-E) or flanged ends (K606)
- K604-E wheel valve (no 4) from 15 mm to 50 mm
- IS 778, PN1.0 (CI-I), 15 mm to 100 mm
Standards and approvals: IS: 778
Specifications
Specifications
| Specification | K604 | K604-E | K606 |
|---|---|---|---|
| Item | Kartar Gun Metal (Bronze) Globe Valve / Wheel Valve | Kartar Gun Metal (Bronze) Globe Valve / Wheel Valve | Kartar Gun Metal (Bronze) Globe Valve |
| Pressure rating | PN1.0 (CI-I) | PN1.0 (CI-I) | PN1.0 (CI-I) |
| Ends | Screwed | Screwed | Flanged |
| Design Standard | IS: 778 | IS: 778 | IS: 778 |
| Sizes (MM) | 15, 20, 25, 32, 40, 50, 65, 80, 100 | 15, 20, 25, 32, 40, 50 | 15, 20, 25, 32, 40, 50, 65, 80, 100 |
| Variant | (wheel valve no 4) |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
