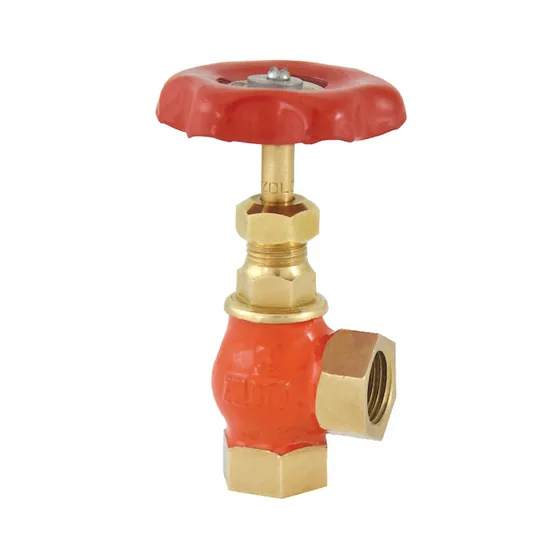

Dealer for ZolotoZoloto Bronze Angle Globe Valve No.4, Screwed (1001A)
Angle pattern bronze globe valve (No.4) with inlet and outlet at right angles, medium pattern, female threaded, 15 mm to 50 mm.
- Angle pattern, medium pattern body
- Female threads to IS 554 / BS 21 / ISO 7
- Screwed in bonnet, inside screw, rising stem, integral seat
- Sheet metal handwheel and PTFE gland packing
- Maximum working temperature 225°C
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 1001A |
|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
| A ~ | 29 | 35 | 43 | 47 | 54 | 66 | |
| B ~ | 75 | 82 | 90 | 115 | 125 | 143 | |
| ØC ~ | 60 | 65 | 70 | 80 | 90 | 110 | |
| D | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | |
| Shell | 24 kg/cm²g (340 psig) | ||||||
| Seat | 16 kg/cm²g (225 psig) | ||||||
| Maximum Working Temperature | 225°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
