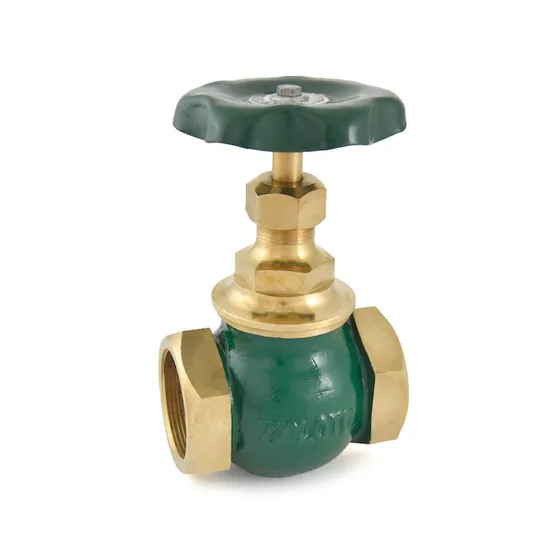

Dealer for ZolotoZoloto Bronze Globe Valve No.5, Heavy Pattern, Screwed (1002)
Heavy pattern bronze globe valve (No.5) with a rising stem, female threaded ends and the option to re-pack under pressure, 8 mm to 80 mm.
- Heavy pattern body
- Female threads to IS 554 / BS 21 / ISO 7
- Screwed in bonnet, inside screw, rising stem, integral seat
- Can be re-packed under pressure; PTFE gland packing
- Maximum working temperature 225°C
Sizes: 8 mm to 80 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 1002 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | |
| Size (mm) | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | |
| A ±1.5 | 34 | 41 | 55 | 65 | 82 | 88 | 98 | 120 | 133 | 160 | |
| B ~ | 58 | 72 | 90 | 103 | 119 | 136 | 147 | 162 | 189 | 215 | |
| ØC ~ | 60 | 60 | 60 | 65 | 70 | 70 | 102 | 110 | 130 | 164 | |
| D | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | 2 1/2″ | 3″ | |
| Shell | 35 kg/cm²g (500 psig) | ||||||||||
| Seat | 20 kg/cm²g (285 psig) | ||||||||||
| Maximum Working Temperature | 225°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
