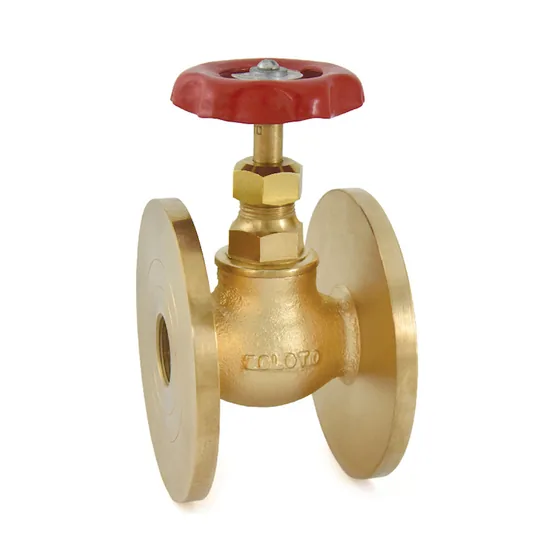

Dealer for ZolotoZoloto Bronze Globe Valve No.8, Flanged (1003)
Medium pattern bronze globe valve (No.8) flanged to BS 10 Table D, with a rising stem, 15 mm to 50 mm.
- Flanged ends to BS 10 Table D
- Screwed in bonnet, inside screw, rising stem, integral seat
- Medium pattern body
- Sheet metal handwheel and PTFE gland packing
- Maximum working temperature 225°C
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 1003 |
|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
| Size (mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
| A ±1.5 | 53 | 67 | 80 | 85 | 91 | 106 | |
| B ~ | 85 | 90 | 98 | 115 | 127 | 140 | |
| ØC ~ | 50 | 57 | 62 | 76 | 80 | 86 | |
| Shell | 24 kg/cm²g (340 psig) | ||||||
| Seat | 16 kg/cm²g (225 psig) | ||||||
| Maximum Working Temperature | 225°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
