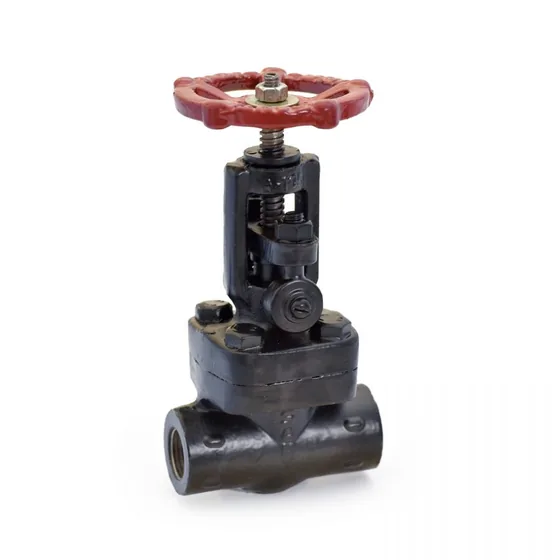

Authorised distributor for Sant ValvesSant Valves FSV-9A Forged Steel Globe Valve, Class 1500, Socket Weld
High pressure forged steel globe valve conforming to BS-5352/API 602, Class 1500, with socket welded ends. Sizes 15 mm to 40 mm.
- Forged carbon steel A 105 body, bolted bonnet, OS&Y rising stem
- Renewable seat and disc, SS AISI-410 trim
- Socket welded ends to ASME B 16.11
- Body test 384 barg; seat test 281 barg hydraulic and 6.9 barg air
Standards and approvals: Conforming to BS-5352/API 602
Sizes: 15 mm, 20 mm, 25 mm, 40 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 40 mm |
|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 40 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/2 |
| F | 88±2 | 100±2 | 130±2 | 171±2 |
| H (Approx) | 155 | 185 | 230 | 280 |
| B | 21.70 | 27.05 | 33.80 | 48.65 |
| A | 14 | 14 | 15 | 15 |
| W | 70 | 86 | 152 | 152 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
