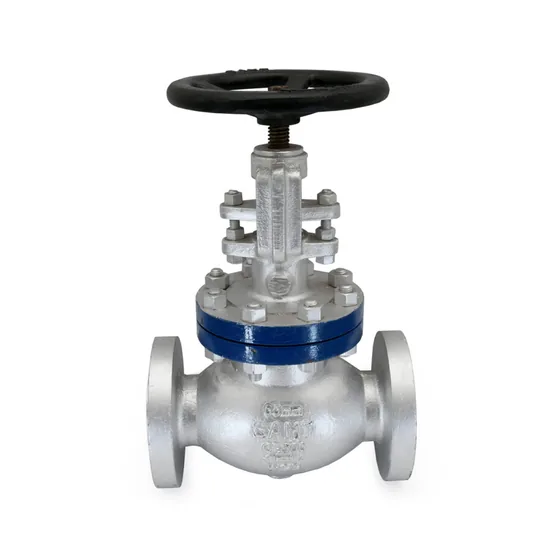

Authorised distributor for Sant ValvesSant Valves CS-10A Cast Steel Globe Valve, Class 600, Flanged
Cast carbon steel (ASTM A-216 Gr. WCB) globe valve to BS 1873, Class 600, with OS&Y rising stem and flanged ends. Sizes 40 mm to 200 mm.
- Bolted bonnet, outside screw and yoke, rising stem
- Renewable seat and disc, SS AISI-410 trim
- Flanges to ASME B 16.5 Class 600 RF, undrilled
- Body test 153 barg; seat test 112 barg hydraulic and 6.9 barg air
Standards and approvals: BS 1873
Sizes: 40 mm to 200 mm
Specifications
Specifications
| Specification | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm | 150 mm | 200 mm |
|---|---|---|---|---|---|---|---|
| Nominal Size | 40 | 50 | 65 | 80 | 100 | 150 | 200 |
| Nominal Size (Inches) | 1.1/2 | 2 | 2.1/2 | 3 | 4 | 6 | 8 |
| F±2 | 242 | 292 | 330 | 356 | 432 | 559 | 660 |
| H (Approx.) | 305 | 360 | 405 | 450 | 525 | 670 | 740 |
| ∅W (Approx.) | 200 | 254 | 305 | 305 | 450 | 560 | 600 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
