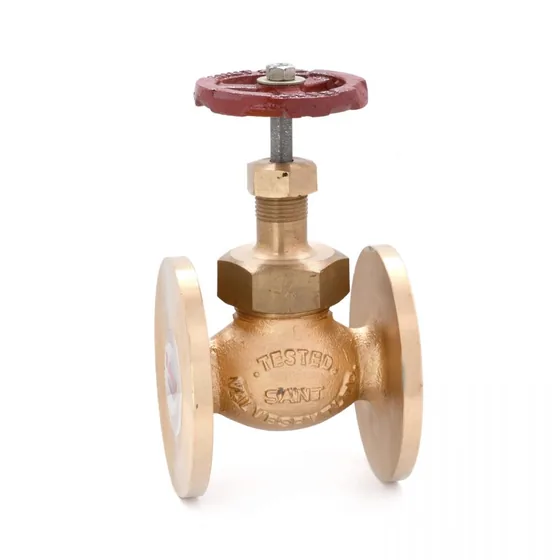

Authorised distributor for Sant ValvesSant Valves SBM-15 Bronze Union Bonnet Globe Valve, PN 25, Flanged
Gun metal union bonnet globe valve conforming to IS 778 Class 2, rated PN 25, with flanges to BS 10 Table F. Sizes 15 mm to 100 mm, for water, oil and steam.
- Screwed on (union) bonnet, inside screw, rising stem
- Renewable seat and renewable disc, SS AISI410 trim
- Expanded pure flexible graphite gland packing
- Flanges to BS 10 Table F F.F. undrilled, body test 42 kg/cm² (600 psig)
Standards and approvals: Conforming to IS:778 Class 2
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 80 | 95 | 115 | 130 | 145 | 170 | 205 | 225 | 280 |
| H | 120 | 130 | 145 | 180 | 185 | 210 | 250 | 290 | 330 |
| W | 70 | 70 | 90 | 90 | 125 | 145 | 145 | 170 | 200 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
