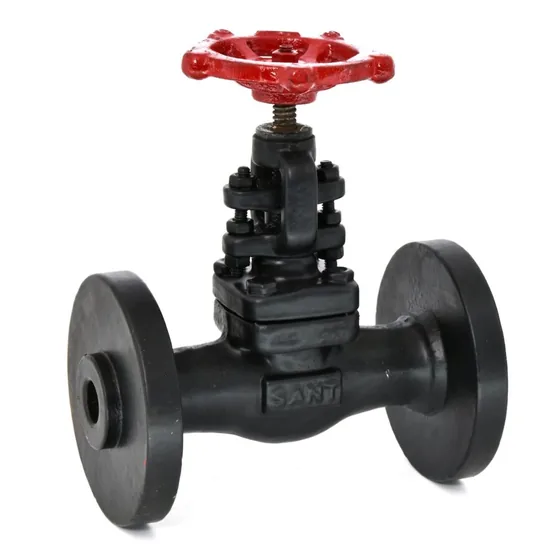

Authorised distributor for Sant ValvesSant Valves FSV-12 Forged Steel Globe Valve, Class 600, Flanged
Forged carbon steel globe valve to API 602 with bolted bonnet, OS&Y rising stem and Class 600 flanges. Sizes 15 mm to 40 mm.
- Forged carbon steel ASTM A 105 body
- Renewable seat and renewable disc, AISI-410 trim
- Flanges to ASME B 16.5 Class 600 RF, undrilled
- Body test 153 barg; seat test 112 barg hydraulic and 6.9 barg air
Standards and approvals: API 602
Sizes: 15 mm, 20 mm, 25 mm, 40 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 40 mm |
|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 40 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/2 |
| F | 165±2 | 190±2 | 216±2 | 241±2 |
| H (Approx) | 145 | 155 | 185 | 211 |
| W (Approx) | 76 | 76 | 86 | 152 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
