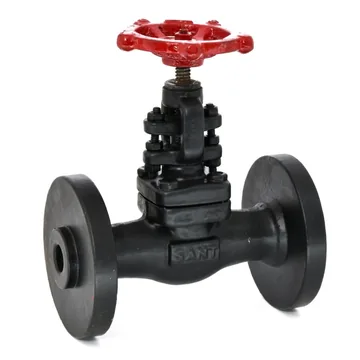

Sant Valves FSV-12 Forged Steel Globe Valve, Class 600, Flanged
Sizes: 15 mm, 20 mm, 25 mm, 40 mm
Forged carbon steel globe valve to API 602 with bolted bonnet, OS&Y rising stem and Class 600 flanges. Sizes 15 mm to 40 mm.
Globe Valves and Steam Stop Valves in Bhopal
Globe valves shut off or regulate flow with a disc that lifts off a seat, so they are used where a line must be throttled as well as isolated, such as test, bypass and drain lines and steam and oil lines. Fire Protection System supplies bronze, gun metal, cast iron, forged steel and cast steel globe valves and steam stop valves from Sant Valves, Kartar Valves and Zoloto in Bhopal and across Madhya Pradesh.
Sant Valves

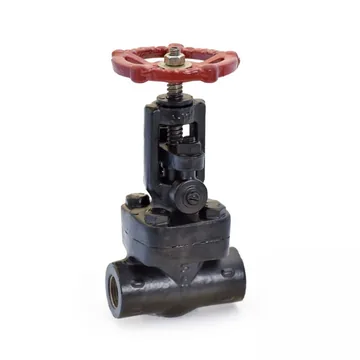

Sant Valves FSV-9A Forged Steel Globe Valve, Class 1500, Socket Weld
Sizes: 15 mm, 20 mm, 25 mm, 40 mm
High pressure forged steel globe valve conforming to BS-5352/API 602, Class 1500, with socket welded ends. Sizes 15 mm to 40 mm.
Sant Valves

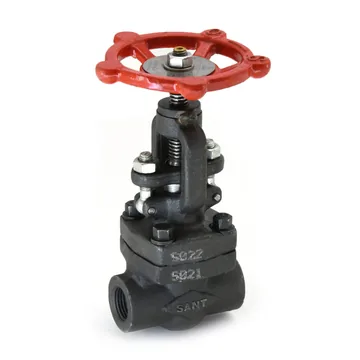

Sant Valves FSV-6B Forged Steel Globe Valve, Class 800, Socket Weld
Sizes: 15 mm to 40 mm
Standard bore forged steel globe valve to BS 5352/API 602, Class 800, with socket welded ends. Sizes 15 mm to 40 mm.
Sant Valves
Sant Valves FSV-6A Forged Steel Globe Valve, Class 800, Screwed NPT
Sizes: 15 mm to 40 mm
Screwed end version of Sant's Class 800 forged steel globe valve, to BS 5352/API 602, with female NPT threads. Sizes 15 mm to 40 mm.
Sant Valves

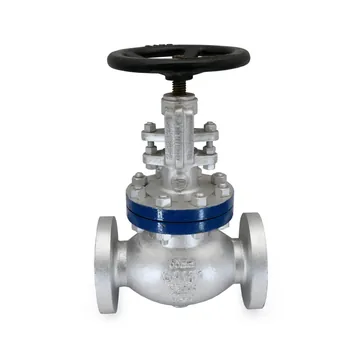

Sant Valves CS-10A Cast Steel Globe Valve, Class 600, Flanged
Sizes: 40 mm to 200 mm
Cast carbon steel (ASTM A-216 Gr. WCB) globe valve to BS 1873, Class 600, with OS&Y rising stem and flanged ends. Sizes 40 mm to 200 mm.
Sant Valves

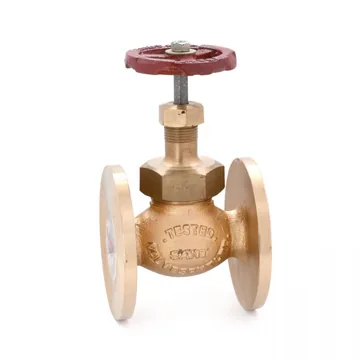

Sant Valves SBM-15 Bronze Union Bonnet Globe Valve, PN 25, Flanged
Sizes: 15 mm to 100 mm
Gun metal union bonnet globe valve conforming to IS 778 Class 2, rated PN 25, with flanges to BS 10 Table F. Sizes 15 mm to 100 mm, for water, oil and steam.
Sant Valves

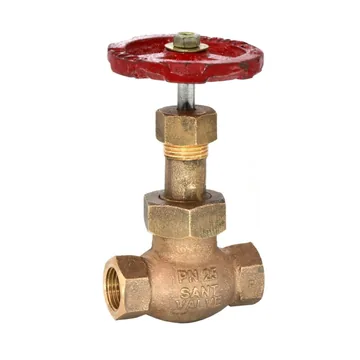

Sant Valves SBM-14 Bronze Union Bonnet Globe Valve, PN 25, Screwed BSP
Sizes: 8 mm to 100 mm
Screwed end version of the SBM union bonnet globe valve, conforming to IS 778 Class 2 and rated PN 25, with female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water, oil and steam.
Sant Valves

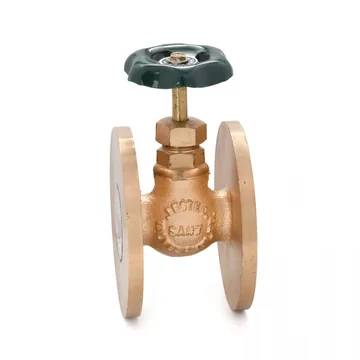

Sant Valves SBM-8 Bronze Globe Valve No.9, Flanged
Sizes: 15 mm to 100 mm
SBM No.9 standard pattern gun metal globe valve with rising stem and flanges to BS 10 Table F. Sizes 15 mm to 100 mm, for water and oil.
Sant Valves

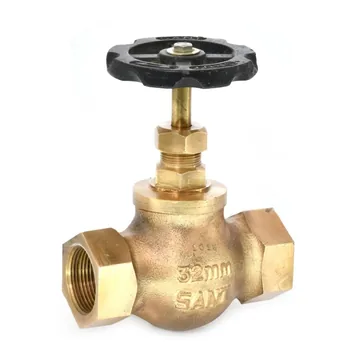

Sant Valves SBM-7 Bronze Globe Valve No.5, Screwed BSP
Sizes: 8 mm to 100 mm
SBM No.5 standard pattern gun metal globe valve with rising stem and female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.
Sant Valves

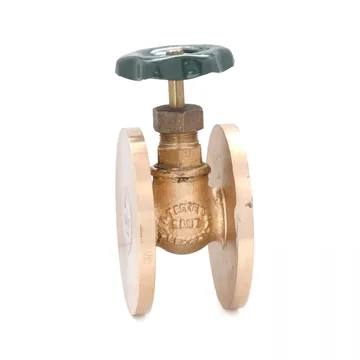

Sant Valves SBM-6 Bronze Globe Valve No.8, Flanged
Sizes: 15 mm to 100 mm
SBM No.8 medium pattern gun metal globe valve with rising stem and flanges to BS 10 Table D. Sizes 15 mm to 100 mm, for water and oil.
Sant Valves

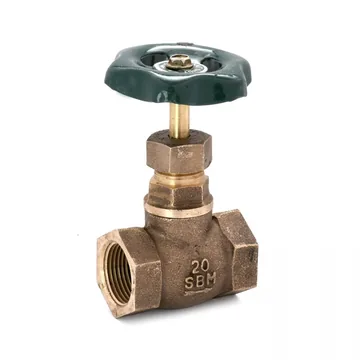

Sant Valves SBM-5 Bronze Globe Valve No.4, Screwed BSP
Sizes: 8 mm to 100 mm
SBM No.4 medium pattern gun metal globe valve with rising stem and female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.
Sant Valves

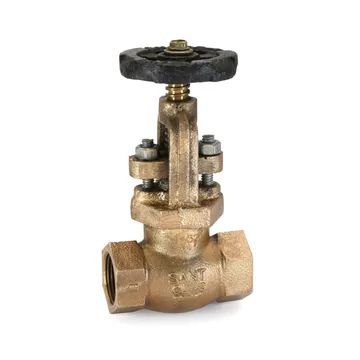

Sant Valves IS-34A Bronze Globe Valve, OS&Y, IS 778 Class 2, Screwed
Sizes: 15 mm to 50 mm
Leaded tin bronze globe valve with outside screw and yoke and rising stem, made as per IS-778 Class 2. Screwed ends, 15 mm to 50 mm, for water and oil.
Sant Valves

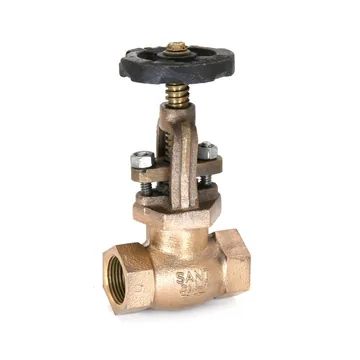

Sant Valves IS-34 Bronze Globe Valve, OS&Y, IS 778 Class 1, Screwed
Sizes: 15 mm to 50 mm
Class 1 version of Sant's OS&Y bronze globe valve, made as per IS-778 with a rising stem. Screwed ends, 15 mm to 50 mm, for water and oil.
Sant Valves

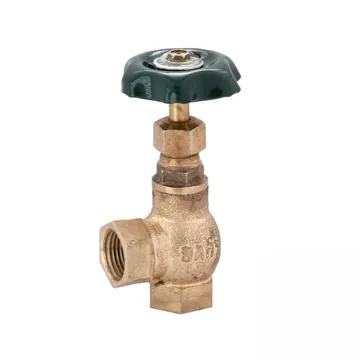

Sant Valves IS-22 Bronze Right Angle Globe Valve No. 4, Screwed
Sizes: 15 mm to 100 mm
Gun metal angle type globe valve that regulates flow and turns the line through a right angle. Screwed BSP ends, 15 mm to 100 mm.
Sant Valves
Sant Valves IS-13 Bronze Globe Valve, IS 778 Class 3, Screwed
Sizes: 15 mm to 100 mm
Class 3 gun metal globe valve made as per IS-778:1971, with inside screw and rising stem. Screwed ends, 15 mm to 100 mm, for water and oil.
Sant Valves

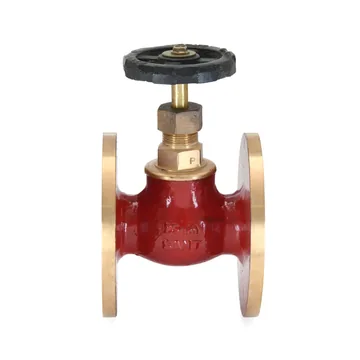

Sant Valves IS-12 Bronze Globe Valve, IS 778 Class 2, Flanged
Sizes: 15 mm to 100 mm
ISI marked gun metal globe valve to IS 778 Class 2 with flanged ends. Sizes 15 mm to 100 mm, for water and oil.
Sant Valves

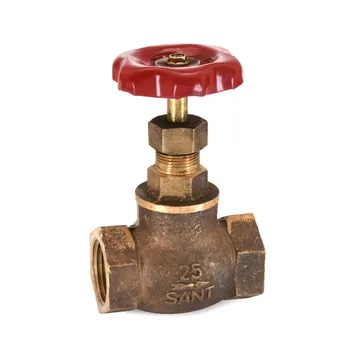

Sant Valves IS-11 Bronze Globe Valve, IS 778 Class 2, Screwed
Sizes: 8 mm to 100 mm
ISI marked gun metal globe valve to IS 778 Class 2 with screwed ends. Sizes 8 mm to 100 mm, for water and oil.
Sant Valves

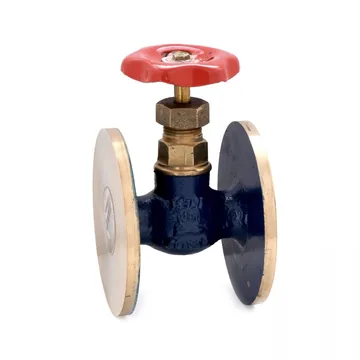

Sant Valves IS-10 Bronze Globe Valve, IS 778 Class 1, Flanged
Sizes: 15 mm to 100 mm
ISI marked gun metal globe valve to IS 778 Class 1 with flanged ends. Sizes 15 mm to 100 mm, for water and oil.
Sant Valves

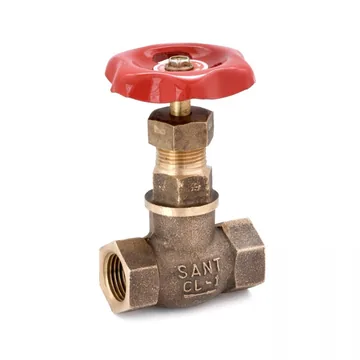

Sant Valves IS-9 Bronze Globe Valve, IS 778 Class 1, Screwed
Sizes: 8 mm to 100 mm
ISI marked gun metal globe valve to IS 778 Class 1 with screwed ends. Sizes 8 mm to 100 mm, for water and oil.
Kartar Valves
Kartar Valves Cast Iron Globe Steam Stop Valve (K-101)
Cast iron globe pattern steam stop valve from 15 mm to 200 mm, for steam up to 13 kg/cm2 at up to 220°C. Handwheel operated, with a renewable stainless steel seat and stem.
Kartar Valves
Kartar Valves Cast Iron Junction Steam Stop Valve, Right Angle (K-102)
Cast iron junction steam stop valve in right angle pattern, from 15 mm to 100 mm, for steam up to 13 kg/cm2 at up to 220°C. Handwheel operated, with stainless steel (AISI 410) parts.
Kartar Valves
Kartar Valves Cast Iron Horizontal Lift Check Valve (K-103)
Cast iron horizontal lift check (non return) valve from 15 mm to 200 mm, for steam up to 13 kg/cm2 at up to 220°C, with a bolted cover and renewable stainless steel seats.
Kartar Valves
Kartar Valves Cast Iron Lift Check Valve, Right Angle (K-104)
Cast iron lift check (non return) valve in right angle pattern, from 15 mm to 100 mm, for steam up to 13 kg/cm2 at up to 220°C, with a bolted cover and renewable stainless steel seats.
Kartar Valves

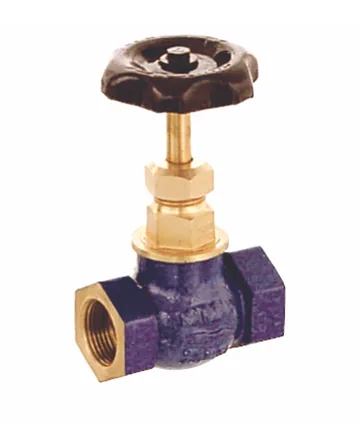

Kartar Valves Gunmetal Globe Valve, IS 778 (K604, K604-E, K606)
A gunmetal (bronze) globe valve made to IS 778 in PN1.0 (CI-I), used to shut off or regulate flow: K604 with screwed ends and K606 with flanged ends from 15 mm to 100 mm, and the K604-E wheel valve from 15 mm to 50 mm.
Kartar Valves
Kartar Valves Gunmetal Safety Valve, Spring Loaded, PN1.6 (K617)
Sizes: 40 mm
A gunmetal (bronze) spring loaded safety valve with screwed ends and enclosed discharge, PN1.6, in 40 mm. A safety valve opens automatically to release excess pressure.
Zoloto

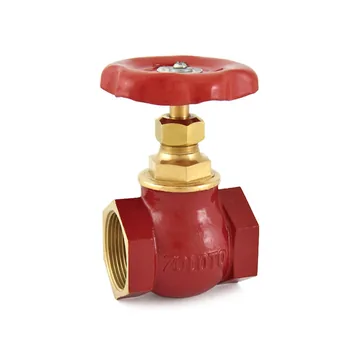

Zoloto Bronze Globe Valve, Medium Pattern, Screwed (1001)
Sizes: 8 mm to 100 mm
Medium pattern bronze globe valve for regulating flow, with a rising stem and female threaded ends, 8 mm to 100 mm.
Zoloto

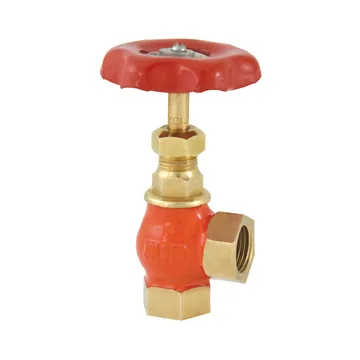

Zoloto Bronze Angle Globe Valve No.4, Screwed (1001A)
Sizes: 15 mm to 50 mm
Angle pattern bronze globe valve (No.4) with inlet and outlet at right angles, medium pattern, female threaded, 15 mm to 50 mm.
Zoloto

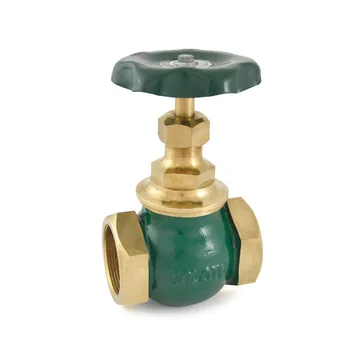

Zoloto Bronze Globe Valve No.5, Heavy Pattern, Screwed (1002)
Sizes: 8 mm to 80 mm
Heavy pattern bronze globe valve (No.5) with a rising stem, female threaded ends and the option to re-pack under pressure, 8 mm to 80 mm.
Zoloto

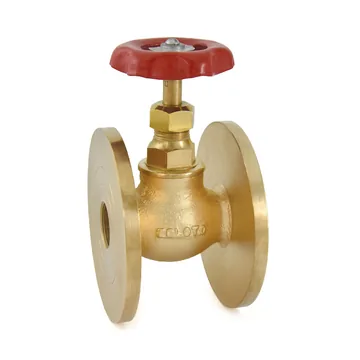

Zoloto Bronze Globe Valve No.8, Flanged (1003)
Sizes: 15 mm to 50 mm
Medium pattern bronze globe valve (No.8) flanged to BS 10 Table D, with a rising stem, 15 mm to 50 mm.
Zoloto

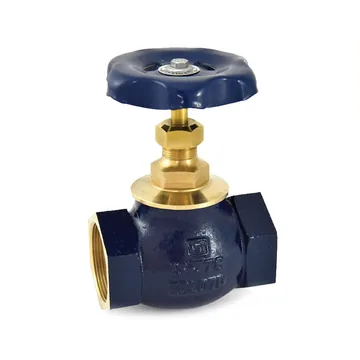

Zoloto Bronze Globe Valve, IS 778 Class 1, Screwed (1033)
Sizes: 8 mm to 100 mm
ISI marked bronze globe valve made to IS 778 Class 1, with a rising stem and female threaded ends, 8 mm to 100 mm.
Zoloto

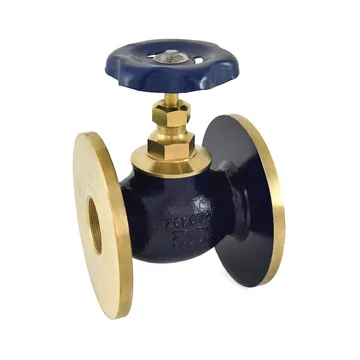

Zoloto Bronze Globe Valve, IS 778 Class 1, Flanged (1034)
Sizes: 15 mm to 100 mm
Flanged, ISI marked bronze globe valve made to IS 778 Class 1 with IS 778 flanges, 15 mm to 100 mm.
How to choose
Start with the fluid and duty. For water and oil lines up to 100 mm, Sant Valves and Zoloto offer bronze and gun metal globe valves to IS 778, with ISI marked Class 1 models from both makers and ISI marked Class 2 models from Sant Valves and Kartar Valves offers gunmetal globe valves to IS 778 (K604, K606) and the K604-E wheel valve. For steam, the Sant Valves SBM-14 and SBM-15 union bonnet valves, rated PN 25 and conforming to IS 778 Class 2, are listed for water, oil and steam, and the Kartar Valves cast iron K-101 globe steam stop valve (15 mm to 200 mm) and K-102 junction steam stop valve (15 mm to 100 mm) are rated for steam up to 13 kg/cm2 at up to 220°C.
Next match the pressure class, choosing one that covers the highest pressure and temperature in that line. The IS 778 class sets the rating of the bronze and gun metal valves: Sant Valves body tests its Class 1 valves at 1.5 MPa and its Class 2 valves at 2.4 MPa. In the Sant Valves SBM series the standard pattern No.9 and No.5 valves are body tested at 35.15 kg/cm² and the medium pattern No.8 and No.4 at 21.09 kg/cm², and Zoloto offers medium pattern (1001, 1001A, 1003) and heavy pattern No.5 (1002) bronze globe valves. For high pressure duty, Sant Valves offers forged steel globe valves to API 602 in Class 600, 800 and 1500 from 15 mm to 40 mm, and the cast steel CS-10A to BS 1873 in Class 600 from 40 mm to 200 mm.
Then choose the pattern and ends. Straight globe valves keep the line straight, while angle valves such as the Sant Valves IS-22, the Zoloto 1001A and the Kartar Valves K-102 turn the line through a right angle. Screwed valves have threads to BS 21, IS 554 or ISO 7, the forged steel valves come with NPT or socket welded ends, and flanged valves have flanges to BS 10 Table D or F, IS 778, ASME B 16.5 Class 600 or DIN-2533 PN-16. OS&Y (outside screw and yoke) designs such as the Sant Valves IS-34 and IS-34A keep the stem thread outside the body, and Zoloto lists several of its bronze globe valves (1002, 1033, 1034) as able to be re-packed under pressure.
Kartar Valves also lists its K-103 horizontal and K-104 right angle cast iron lift check valves with this range, for non return duty on steam up to 13 kg/cm2, and a gunmetal spring loaded safety valve (K617, PN1.6, 40 mm) that opens to release excess pressure. Renewable seats and discs, found on the Sant Valves SBM union bonnet valves, the steel valves and the Kartar Valves cast iron valves, let worn parts be replaced instead of the whole valve. FPS supplies, installs and maintains globe valves across Madhya Pradesh.
Frequently asked questions
What is the difference between a globe valve and a gate valve?
A gate valve is meant to be fully open or fully shut, while a globe valve lifts a disc off a seat and can also regulate the flow. Globe valves are chosen where a line must be throttled as well as isolated.
What is a steam stop valve?
It is a globe pattern valve built for steam service. Kartar Valves offers cast iron globe and junction (right angle) steam stop valves for steam up to 13 kg/cm2 at up to 220°C, with flanged PN-16 ends.
What do IS 778 Class 1, Class 2 and Class 3 mean?
IS 778 is the Indian standard that the Sant Valves, Kartar Valves and Zoloto bronze and gun metal globe valves are made to, and the class sets the pressure rating. Sant Valves body tests its Class 1 valves at 1.5 MPa, its Class 2 valves at 2.4 MPa and its Class 3 IS-13 at 50 kg/cm², and Zoloto offers ISI marked Class 1 globe valves (1033, 1034).
When should I use an angle globe valve?
Use one where the line turns through a right angle, since the valve regulates the flow and changes direction in one fitting. Sant Valves offers the gun metal IS-22, Zoloto the bronze 1001A and Kartar Valves the cast iron K-102 junction steam stop valve.
Are globe valves used in fire protection systems?
They are used on small auxiliary lines where flow must be regulated, such as test and bypass lines, while main hydrant and sprinkler lines are usually isolated with gate, sluice or butterfly valves. FPS advises on the right valve for each line.
Does FPS supply globe valves, and how do I get a price?
FPS is an authorised distributor of Sant Valves and Kartar Valves and a dealer for Zoloto, and it supplies, installs and maintains globe valves in Bhopal and across MP. Prices depend on material, size and class and are shared on request: call or WhatsApp +91 92440 89060.
