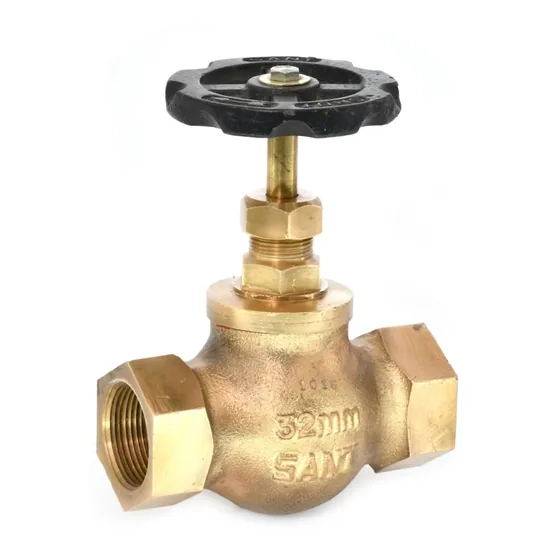

Authorised distributor for Sant ValvesSant Valves IS-13 Bronze Globe Valve, IS 778 Class 3, Screwed
Class 3 gun metal globe valve made as per IS-778:1971, with inside screw and rising stem. Screwed ends, 15 mm to 100 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2
- Screwed in bonnet, inside screw, rising stem, integral seat
- Cu-alloy trim, PTFE gland packing
- Female threads to IS:554 parallel; body test 50 kg/cm², seat and back seat test 40 kg/cm²
Standards and approvals: As Per IS-778:1971, IS : 778 : 1971 Class-3
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 89±1.5 | 100±1.5 | 117±1.5 | 133±1.5 | 150±1.5 | 178±1.5 | 200±1.5 | 250±1.5 | 300±1.5 |
| H (Approx.) | 90 | 110 | 120 | 130 | 150 | 180 | 210 | 226 | 250 |
| ∅W (Approx.) | 60 | 65 | 80 | 90 | 145 | 175 | 195 | 195 | 230 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
