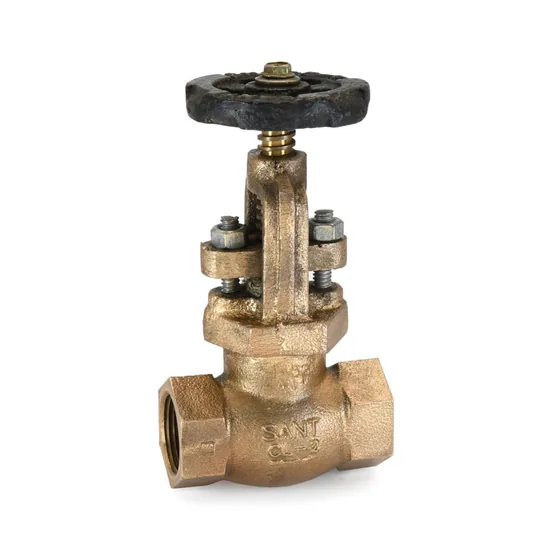

Authorised distributor for Sant ValvesSant Valves IS-34A Bronze Globe Valve, OS&Y, IS 778 Class 2, Screwed
Leaded tin bronze globe valve with outside screw and yoke and rising stem, made as per IS-778 Class 2. Screwed ends, 15 mm to 50 mm, for water and oil.
- Leaded tin bronze body to IS:318 Gr.LTB2
- Screwed in bonnet, outside screw and yoke, rising stem
- Integral seat, Cu-alloy trim, PTFE gland packing
- Female threads to IS-554 parallel; body test 2.4 MPa, seat test 1.6 MPa
Standards and approvals: As per IS-778, IS : 778 Class-2
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm |
|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 |
| F | 60±1.5 | 70±1.5 | 80±1.5 | 95±1.5 | 110±1.5 | 125±1.5 |
| H (Approx.) | 110 | 120 | 135 | 150 | 165 | 180 |
| ∅W (Approx.) | 60 | 60 | 65 | 75 | 80 | 90 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
