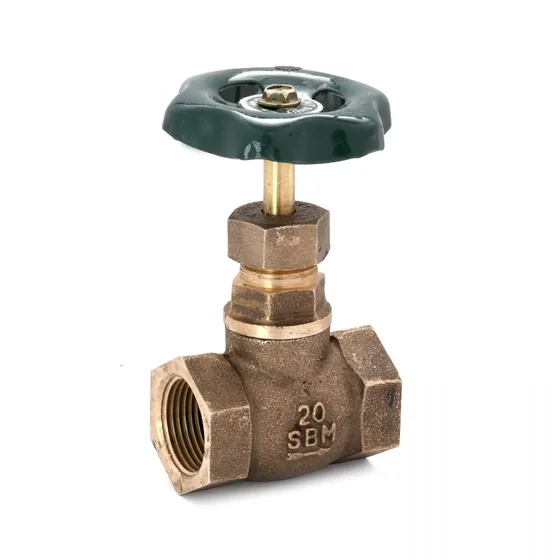

Authorised distributor for Sant ValvesSant Valves SBM-5 Bronze Globe Valve No.4, Screwed BSP
SBM No.4 medium pattern gun metal globe valve with rising stem and female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2
- Screwed in bonnet, inside screw, rising stem
- Integral seat, renewable disc, Cu-alloy trim, graphite packing
- Body test 21.09 kg/cm², seat test 14.06 kg/cm²
Sizes: 8 mm to 100 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 38 | 41 | 48 | 56 | 67 | 80 | 90 | 106 | 135 | 156 | 190 |
| H | 75 | 75 | 80 | 85 | 100 | 115 | 130 | 135 | 180 | 190 | 230 |
| W | 50 | 50 | 50 | 60 | 65 | 80 | 80 | 90 | 105 | 115 | 145 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
