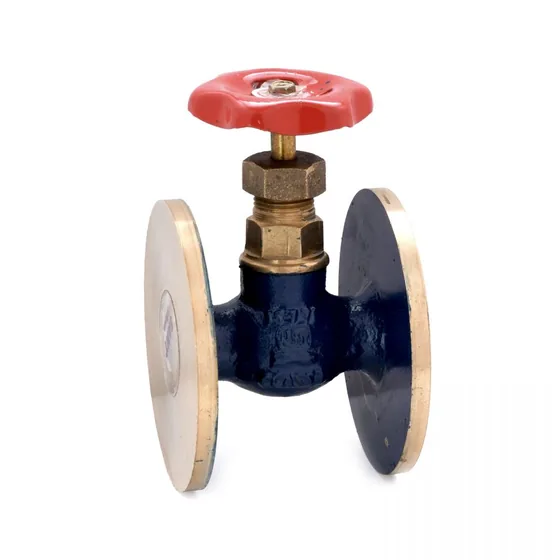

Authorised distributor for Sant ValvesSant Valves IS-10 Bronze Globe Valve, IS 778 Class 1, Flanged
ISI marked gun metal globe valve to IS 778 Class 1 with flanged ends. Sizes 15 mm to 100 mm, for water and oil.
- IS 778 Class 1, ISI marked
- Gun metal body to IS:318 Gr.LTB2, integral seat, Cu-alloy trim
- Inside screw, rising stem, PTFE gland packing
- Flanges to IS:778 Class-1 F.F. undrilled; body test 1.5 MPa, seat and back seat test 1.0 MPa
Standards and approvals: IS-778, IS : 778 Class-1, ISI Marked
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 75±1.5 | 85±1.5 | 95±1.5 | 110±1.5 | 120±1.5 | 145±1.5 | 165±1.5 | 185±1.5 | 216±1.5 |
| H (Approx.) | 85 | 90 | 115 | 120 | 130 | 135 | 170 | 200 | 230 |
| ∅W (Approx.) | 60 | 60 | 65 | 75 | 90 | 90 | 140 | 175 | 200 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
