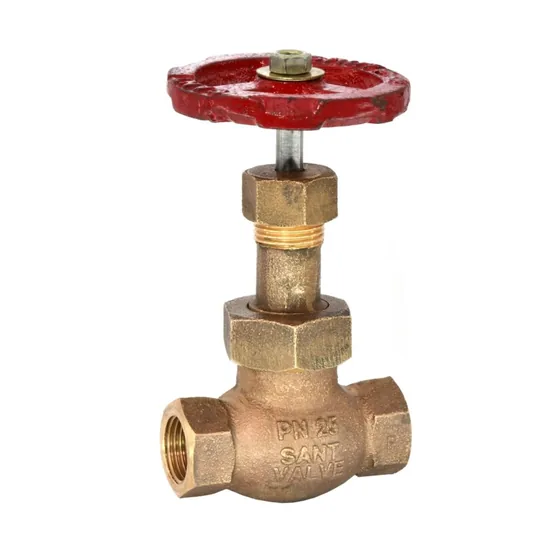

Authorised distributor for Sant ValvesSant Valves SBM-14 Bronze Union Bonnet Globe Valve, PN 25, Screwed BSP
Screwed end version of the SBM union bonnet globe valve, conforming to IS 778 Class 2 and rated PN 25, with female BSP threads to BS 21. Sizes 8 mm to 100 mm, for water, oil and steam.
- Screwed on (union) bonnet, inside screw, rising stem
- Renewable seat and renewable disc, SS AISI410 trim
- Expanded pure flexible graphite gland packing
- Body test 42 kg/cm² (600 psig)
Standards and approvals: Conforming to IS:778 Class 2
Sizes: 8 mm to 100 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 55 | 60 | 70 | 85 | 100 | 115 | 125 | 150 | 180 | 200 | 250 |
| H | 110 | 110 | 120 | 130 | 145 | 160 | 185 | 210 | 250 | 275 | 290 |
| W | 60 | 70 | 70 | 70 | 95 | 105 | 125 | 145 | 145 | 170 | 200 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
