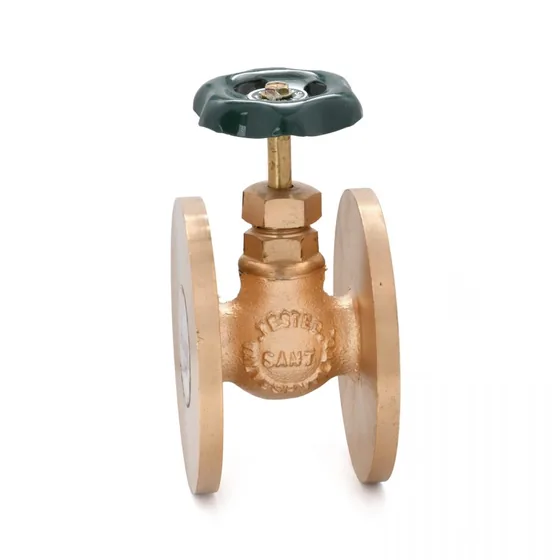

Authorised distributor for Sant ValvesSant Valves SBM-8 Bronze Globe Valve No.9, Flanged
SBM No.9 standard pattern gun metal globe valve with rising stem and flanges to BS 10 Table F. Sizes 15 mm to 100 mm, for water and oil.
- Gun metal body to IS:318 Gr.LTB2
- Screwed in bonnet, inside screw, rising stem
- Integral seat, renewable disc, Cu-alloy trim, graphite packing
- Body test 35.15 kg/cm² (500 psig), seat test 21.09 kg/cm² (300 psig)
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 | 2.1/2 | 3 | 4 |
| F | 55 | 64 | 76 | 86 | 102 | 110 | 156 | 176 | 210 |
| H | 85 | 95 | 110 | 115 | 130 | 155 | 190 | 200 | 240 |
| W | 60 | 65 | 70 | 80 | 80 | 90 | 140 | 175 | 195 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
