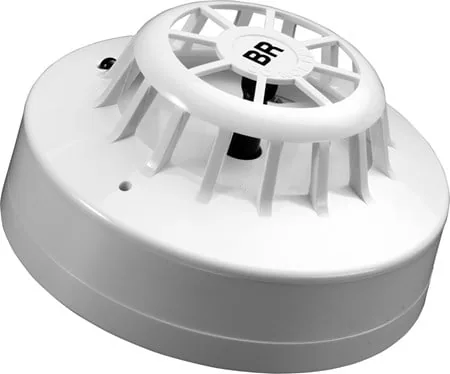

Authorised distributor for ApolloA conventional heat detector in class BR, for areas that run warmer than a normal room, with rate of rise response. Its dual thermistor network gives a voltage output that follows the surrounding air temperature.
Standards and approvals: EN 54-5, FG, VdS, BOSEC, LPCB, CPR
| Specification | 55000-127APO |
|---|---|
| Warranty | 10 year |
| Applications | B&Bs/guest houses, Cafes, Dusty environments, Restaurants, Retail, Small to medium buildings |
| Heat classification | BR |
| Colour | White |
| Weight | 80g |
| Materials housing | Polycarbonate |
| Materials terminals | Nickel plated stainless steel |
| Product length | 42mm | 1.65in |
| Product diameter | 100mm | 3.94in |
| Quiescent current | 250μA |
| Polarity | L1 &, L2 are polarity insensitive |
| Holding voltage | 6 to 6V |
| Holding voltage (max) | 6V |
| Holding voltage (min) | 6V |
| Minimum voltage to light alarm LED | 12V |
| Alarm load | 420Ω in series with 2V drop |
| Humidity (max) | 95%, RH |
| Humidity (min) | 0%, RH |
| Humidity Note | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) |
| Operating temperature | 20 to 90°C | 68 to 194°F |
| Operating temperature (max) | 90°C | 194°F |
| Operating temperature (min) | 20°C | 68°F |
| IP rating Value | IP23D |
| Storage temperature (max) | 120°C |
| Storage temperature (min) | -30°C |
| Storage temperature | -30 to 120°C |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
A conventional optical smoke detector that senses smoke in its chevron chamber by photo-electric light scattering and responds well to slow burning, smouldering fires. It comes in a standard and a flashing LED version, and its LED is clear in normal state and lights red in alarm.
A conventional heat detector that monitors temperature with a dual thermistor network, classed A1R to EN 54-5: the lowest temperature band, with rate of rise response. It suits places where smoke detectors are unsuitable, such as dirty, smoky or steamy areas.
A conventional heat detector in class CR, for areas with higher normal temperatures, that also responds to a fast rise in temperature. Its dual thermistor network gives an output that follows the surrounding air temperature.
A conventional heat detector in class CS, which responds at a fixed temperature in the higher C band rather than to a rate of rise. Its dual thermistor network follows the surrounding air temperature.
A conventional optical smoke detector using the light scatter principle, with sensing technology designed to reduce false alarms. It responds well to slow burning, smouldering fires.
A conventional detector that combines optical smoke and heat sensing: good for general use and more sensitive than an optical detector to fast burning, flaming fires, including liquid fires. Apollo recommends it where heat is likely early in a fire.
A battery operated, Wi-Fi enabled photoelectric smoke detector from the IMPACT by Honeywell range. When smoke reaches its alarm threshold it sounds a buzzer, flashes an LED and sends real-time alerts to a smartphone through the IMPACT by Honeywell app.
A battery operated standalone smoke alarm with photoelectric sensing that sounds an alarm and lights a red LED when smoke reaches its threshold. It runs on two AA batteries and also warns of a low battery or a chamber fault.
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.
An intelligent photoelectric smoke detector with dual thermistors that add 135°F (57°C) fixed temperature heat sensing in the same head.
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.
An S200A multi-criteria detector that adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response to a wide range of fires.
