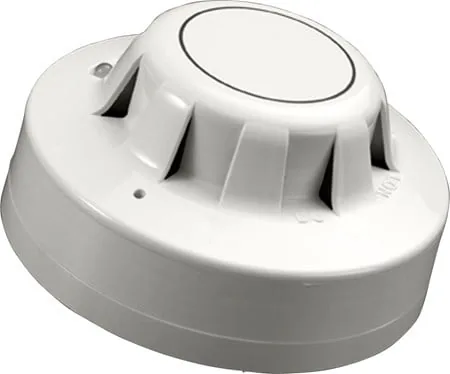

Authorised distributor for ApolloA conventional optical smoke detector that senses smoke in its chevron chamber by photo-electric light scattering and responds well to slow burning, smouldering fires. It comes in a standard and a flashing LED version, and its LED is clear in normal state and lights red in alarm.
Standards and approvals: EN 54-7, BOSEC, CPR, FG, LPCB, VdS, UL
| Specification | 55000-317APO | 55000-316APO |
|---|---|---|
| Warranty | 10 year | 10 year |
| Applications | B&Bs/guest houses, Bedrooms, Cafes, Restaurants, Retail, Small to medium buildings, Care homesHMOs, Hospitals, Hotels, Industrial premises, Large vessels, Listed buildings, Medium to large buildings, Offices, University campuses, Warehouses | B&Bs/guest houses, Bedrooms, Cafes, Restaurants, Retail, Small to medium buildings |
| Fire Type | Slow burning, smouldering fires | Slow burning, smouldering fires |
| Colour | White | White |
| Finish | Gloss | |
| Sensor configuration | Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. | Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light. |
| Weight | 0.22lbs | 99g | 99g |
| Materials housing | Polycarbonate | Polycarbonate |
| Materials terminals | Nickel plated stainless steel | Nickel plated stainless steel |
| Product length | 42mm | 1.65in | 42mm | 1.65in |
| Product diameter | 100mm | 3.94in | 100mm | 3.94in |
| Detection principle | Photo-electric light scattering. | Photo-electric light scattering. |
| Chamber type | Chevron | Chevron |
| Power-up surge current | 0.115mA | 0.115mA |
| Maximum power-up time | 30 seconds | 30 seconds |
| Status indicator: Alarm | Red | Red |
| Status indicator: Fault | Off | Off |
| Quiescent current | 50μA | 50μA |
| Quiescent current tested at | 24V dc | 24V dc |
| Supply voltage (max) | 33V dc | 33V dc |
| Supply voltage (min) | 9V dc | 9V dc |
| Supply voltage (Vmin-Vmax) | 9 to 33V dc | 9 to 33V dc |
| Terminal functions L2 | -L2, Line in & out negative | -L2, Line in & out negative |
| Terminal functions L1 in | +L1 in | +L1 in |
| Terminal functions L1 out | +L1 out | +L1 out |
| Terminal functions -R | -R, Remote indicator negative connection | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity insensitive | L1 &, L2 are polarity insensitive |
| Battery powered | No | No |
| Sampling frequency | Once every 3 seconds | Once every 3 seconds |
| Holding voltage (min) | 6V | 6V |
| Minimum voltage to light alarm LED | 12V | 12V |
| Alarm reset time | 1s | 1s |
| Alarm load | 420Ω in series with 2V drop | 420Ω in series with 2V drop |
| Humidity (max) | 95%, RH | 95%, RH |
| Humidity (min) | 0%, RH | 0%, RH |
| Humidity Note | no condensation or icing | no condensation or icing |
| Humidity | 0% to 95% (no condensation or icing) | 0% to 95% (no condensation or icing) |
| Operating temperature | -20 to 60°C | -4 to 140°F | -20 to 60°C | -4 to 140°F |
| Operating temperature (max) | 60°C | 140°F | 60°C | 140°F |
| Operating temperature (min) | -20°C | -4°F | -20°C | -4°F |
| IP rating Value | IP23D | IP23D |
| Storage temperature (max) | 80°C | 80°C |
| Storage temperature (min) | -30°C | -30°C |
| Storage temperature | -30 to 80°C | -30 to 80°C |
| Effect of wind speed | None | None |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
