Notifier FSP-951 Intelligent Photoelectric Smoke Detector
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.

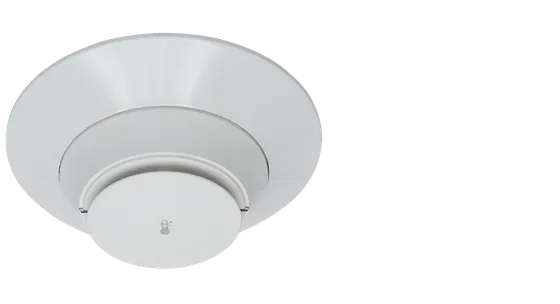

Dealer for NotifierNotifier FST-951H Intelligent High Temperature Heat Detector, 190°F (88°C)
An intelligent addressable heat detector with a thermistor sensing circuit, factory preset to 190°F (88°C) for high temperature detection.
- Fixed high temperature, factory preset to 190°F (88°C)
- Thermistor sensing circuit
- Rotary address switches for exact detector location
- Dual LEDs for 360° visibility
- Operating range -20°C to 66°C
- UL/ULC listed, FM approved, CSFM listed
Standards and approvals: UL/ULC Listing: S2101, FM Approved, CSFM: 7270-0028:0502
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Size | 2.0" (5.3 cm) high; base determines diameter.: B300-6: 6.1" (15.6 cm) diameter., B501: 4" (10.2 cm) diameter. | |
| Shipping weight | 3.4oz (96.4g) | |
| Operating temperature range | • FST-951, FST-951R Series:, 20°C to 38°C (-4°F to 100°F); • FST-951H Series:, 20°C to 66°C (-4°F to 150°F). | |
| Detector spacing | UL approved for 50 ft. (15.24 m) center to center. | |
| Relative humidity | 10% to 93% non-condensing. | |
| Thermal ratings | Fixed-temperature set point 57°C (135°F), rate-of- rise detection 8.3°C (15°F) per minute, high temperature heat 88°C (190°F). | |
| Voltage range | 15 - 32 volts DC peak. | |
| Standby current (max. avg.) | 200uA @ 24 VDC (one communica- tion every 5 seconds with LED enabled). | |
| LED current (max.) | 4.5mA @ 24 VDC (“ON”). |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
More Notifier Addressable Detectors
Notifier FSP-951T Photoelectric Smoke Detector with Thermal Sensing
An intelligent photoelectric smoke detector with dual thermistors that add 135°F (57°C) fixed temperature heat sensing in the same head.
Notifier FST-951 Intelligent Fixed Temperature Heat Detector, 135°F (57°C)
An intelligent addressable heat detector that uses a thermistor sensing circuit for 135°F (57°C) fixed temperature detection.
Notifier FST-951R Intelligent Rate-of-Rise Heat Detector
A low-profile intelligent addressable heat detector that responds to a rate of temperature rise of 15°F (8.3°C) per minute.
Notifier FSP-951-ISO Photoelectric Smoke Detector with Built-in Isolator
An intelligent plug-in photoelectric smoke detector with a built-in isolator, for FlashScan systems only.
Notifier FSP-951T-ISO Smoke and Heat Detector with Built-in Isolator
An intelligent photoelectric smoke detector with 135°F (57°C) fixed heat sensing and positive side isolation on the SLC, used with an isolation base, for FlashScan systems only.
