Ravel Conventional Photoelectric Smoke and Heat Detector
A conventional multi sensor detector that combines a photoelectric smoke sensor with a heat sensor, on a regular 100 mm base.

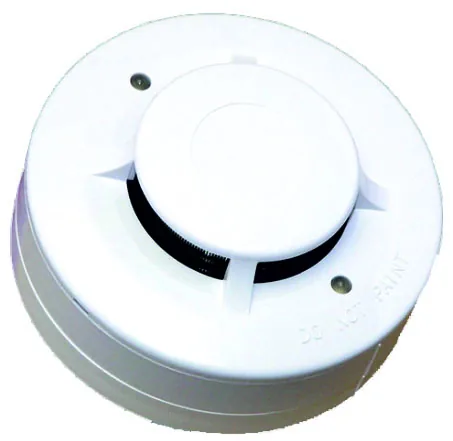

Dealer for RavelRavel RE-326 Series Conventional Smoke and Heat Detectors
A conventional detector series in seven ordering versions, covering smoke and heat models, relay contact outputs and an auto reset version.
- Smoke and heat versions
- Normally open or normally closed alarm contact, 1 A at 30 V DC
- Auto reset version available
- 10 to 28 V DC operation, IP42
- Dual LEDs, low profile housing on a regular 100 mm base
- Listed by Ravel to the EN 54 standard
Specifications
Specifications
| Specification | Details | Details | Details |
|---|---|---|---|
| Operating Voltage | 10 ~ 28V DC. | ||
| Operating Temperature | 0 °C to 37.8 °C. | ||
| Relative Humidity | 10% to 90%. | ||
| Reset Voltage | less than 1V. | ||
| Stand by Current | 85 Micro Amps. | ||
| Start Up Time | 30 Seconds. | ||
| Cycle time | 28 to 35 Seconds. | ||
| Alarm Current | 60 mA (Max.). | ||
| Remote Output | 15mA maximum open collector. | ||
| Smoke Sensitivity | 0.10 to 0.16 dB/m. | ||
| Thermal Rating | 57 OC (135 OF). | ||
| C,NO | 1A @ 30 VDC; 0.5A @ 125VAC. | ||
| C,NC | 1A @ 30 VDC; 0.5A @ 125VAC (Optional On Order Basis) | ||
| Height | 46 mm with base | ||
| Diameter | 100 mm dia | ||
| Weight | 130 g with base | ||
| IP Rating | IP: 42 |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
