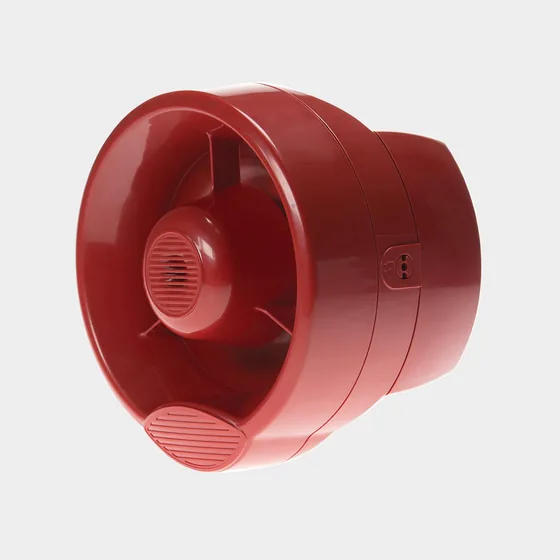

Authorised distributor for CeasefireModular conventional wall sounder with up to 100 dB(A) at 1 m, 32 tones and two stage alarm capability, weatherproof as standard. Designed and tested to EN 54-3 and certified by LPCB.
Standards and approvals: EN 54-3, LPCB
| Specification | TI-002272 |
|---|---|
| Type | Conventional |
| Model | TI-002272 |
| Maximum Sound Output at 24 V DC | 100 dB(A) @ 1M |
| Number of Selectable Tones | 32 |
| Tone Frequency Range | 400 Hz to 2900 Hz |
| Operating Voltage | 15-40V DC |
| Alarm(Activated) Current Consumption | 5mA - 8mA @ 24V DC |
| Ambient Temperature | -25°C to +70°C |
| Relative Humidity | 95% (non condensing) |
| Dimensions (Diameter x Depth) | 116mm (Ø) x 42mm (depth) |
| Standard | EN 54-3 |
| Certification/Approval Authority | LPCB |
| Protection Class | Designed to meet IP65 |
| Product Warranty | 1 Year Warranty |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Conventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.
Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.
Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.
A loop powered detector base sounder strobe from the Morley-IAS IAV range that warns building users of an emergency, with a white base and clear lens, listed to EN 54-23.
A compact red horn with the universal fire symbol that sounds the fire alarm, with volume and tone set on rotary switches at the back. It synchronises without additional modules.
A conventional horn strobe from the L-Series that uses LED lighting for lower current draw, with candela, tone and volume selected in the field. It is UL listed.
An addressable, loop powered base sounder for the Soteria range that connects directly to an XPERT base, with a choice of tones and volume levels.
The Soteria base sounder with a white flashing visual indicator, loop powered and connecting directly to an XPERT base.
An addressable sounder with a built in strobe of 10 high glow LEDs. It can be programmed to work as a sounder only, a sounder strobe or a strobe only.
