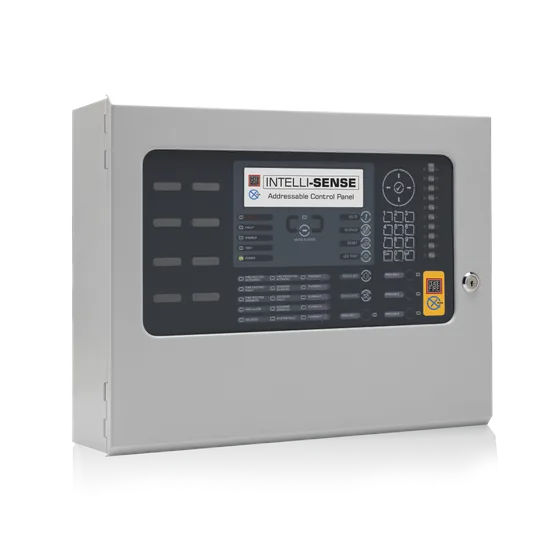

Authorised distributor for CeasefireAddressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Standards and approvals: EN 54-2:1998, EN 54-4:1998, EN54-13:2005, EN54
| Specification | TI-002317-V | TI-002318-V | TI-002319-V |
|---|---|---|---|
| Type | Addressable | Addressable | Addressable |
| Model | TI-002317-V | TI-002318-V | TI-002319-V |
| Base Technology | Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets | Dual flash-based processors with real time clock, trace diagnostics, programmable languages and character sets | Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets |
| Display | White backlit 240 x 64 graphical LCD | White backlit 240 x 64 graphical LCD | White backlit 240 x 64 graphical LCD |
| LED Indicators | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 12 bi-colour (Fault & System) | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 12 bi-colour (Fault & System) |
| Controls | Alphanumeric keypad permitting navigation, Reset, Mute, Silence, Resound, Evacuate, and 4x programmable push buttons | Alpha numeric keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate, and 4x programmable push buttons | Alpha numeric keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x Programmable Push Buttons |
| Protocol | Fully digital communication protocol | Fully digital communication protocol | Fully digital communication protocol |
| Number of Fire Zones | 2000 (200 per individual panel) | 2000 (200 per individual panel) | 2000 (200 per individual panel) |
| Number of Loops | 1 | Dedicated 1-2 loop control panel | Dedicated 1-4 loop control panel |
| Devices per Loop | 240 Addressable Detectors and Devices | 240 Addressable Detectors and Devices | 240 Addressable Detectors and Devices |
| Loop Current | 500mA | 500mA | 500mA |
| On-Board Sounder Circuits | 2x1 Amp programmable | 2x1 Amp programmable | 4x1 Amp programmable |
| On-Board Relays | 2x1Amp 30vAC/DC programmable(10mA,5vmin)-expandable to 4 TI-002370 (2-Way Relay Card) | 2x1Amp 30vAC/DC programmable(10mA,5vmin) expandable to 4 TI-002370 (2-Way Relay Card) | 2x1 Amp 30v AC/DC programmable (10mA,5v min)-expandable to 4 using TI-002370 (2-Way Relay Card) |
| Auxiliary Supply | 1 x 24v500mA | 1 x 24v500mA | 1 x 24v500mA |
| Programmable Input | 1 x monitored programmable input on-board | 1 x monitored programmable input on-board | 1 x monitored programmable input on-board |
| Programmable Key Switch Inputs | 1 x volt free input (standard enc.), 8 x inputs (Only with medium enclosure panel TI-002317-VM) | 8 volt free inputs | 8 volt free inputs |
| Total Available Output Current | 3A maximum available for loop current + sounder outputs + auxiliary supply | 5A maximum available for loop current + sounder outputs + auxiliary supply | 5A maximum available for loop current + sounder outputs + auxiliary supply |
| Mains Supply | 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.0AMax | 200 - 240v 47-63 HzAC (+10%, -15% tolerance) 1.4Amax | 200 - 240v 47-63 HzAC (+10%, -15% tolerance) 1.4Amax |
| Charger Current | 1A temperature compensated | 2A temperature compensated | 2A temperature compensated |
| Serial Port | 1 x on-board RS232 connection for PC, modem, IP, or portable printer | 1 x on-board RS232 connection for PC, modem, IP, or portable printer | 1 x on-board RS232 connection for PC, modem, IP, or portable printer |
| USB Interface | 1 x USB B type connection for PC communication | 1 x USB B type connection for PC communication | 1 x USB B type connection for PC communication |
| Programming | On-board keypad or PC running Windows tools | On-board keypad or PC running Windows tools | On-board keypad or PC running Windows tools |
| Event Log | 5000 event & diagnostic + 500 fire | 5000 event & diagnostic + 500 fire | 5000 event & diagnostic + 500 fire |
| Networking | Optional plug-in network card (TI-002325 - standard, or TI-002324 -fault-tolerant) | Optional plug-in network card (TI-002325 - standard, or TI-002324 -fault-tolerant) | Optional plug-in network card (TI-002325 - standard, or TI-002324 -fault-tolerant) |
| Printer (optional) | On-board (only with medium enclosure panel TI-002317-VM) | ||
| Enclosure/Colour | Steel IP30 /RAL7035 | Steel IP30 /RAL7035 | Steel IP30 /RAL7035 |
| Metal work Options | Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount | Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount | Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
