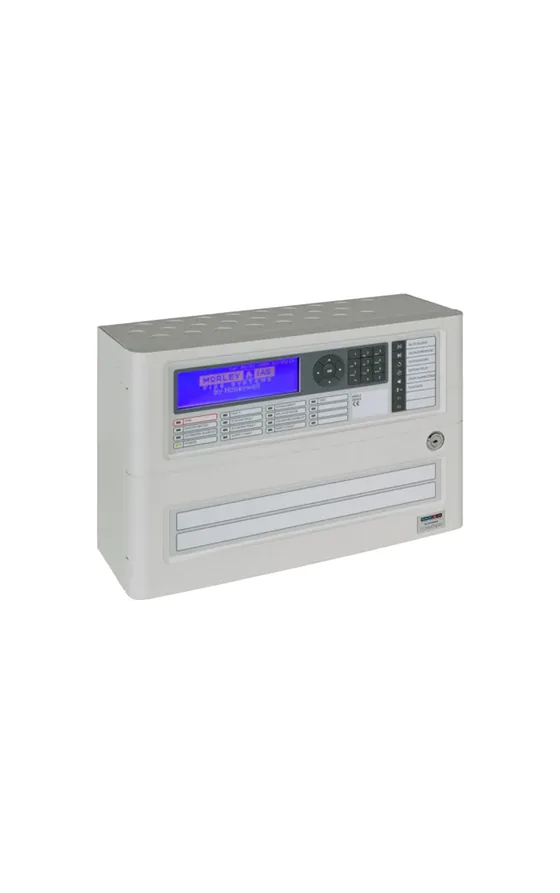

Dealer for Morley by HoneywellMorley by Honeywell DXc1 Single Loop Addressable Fire Alarm Control Panel
A one loop, networkable analogue addressable panel from the Morley EN DXc range that uses the Morley protocol. It works on its own or in a network of DXc panels up to 16 loops.
- One loop, Morley protocol
- Two sounder circuits (1A max), alarm and fault relay, one programmable relay
- 6 x 40 character LCD, USB port for PC programming, RS485 port for repeaters
- Two keys and two inputs for programmable functions
- 110/230V AC supply, 24V DC 2A PSU, 2 x 7Ah standby batteries
- Mild steel rear enclosure with ABS front cover, 4kg without batteries
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | 714/001/115 |
|---|---|
| DIMENSIONS [MM] (H X W X D) | 260 x 390 x 147 |
| WEIGHT (EXCLUDING BATTERIES) | 4kg |
| COLOUR | RAL 9002 - Grey white |
| MOUNTING HOLES | 3 |
| OPERATING TEMPERATURE | 0°C to +40°C |
| RELATIVE HUMIDITY | 5% - 95% non-condensing |
| MATERIAL | Mild steel sheet rear enclosure. ABS plastic front cover to BS EN60950. All displays and controls are carried on the enclosure door. |
| OPERATING VOLTAGE | 110 / 230V AC +/-15% |
| PSU RATING | 24V DC 2A |
| STAND-BY BATTERIES | 2 x 7Ah |
| AUXILLIARY OUTPUT | +24V DC 250mA fused |
| 714/001/115 | DXc1 One loop Fire Alarm Control Panel |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
