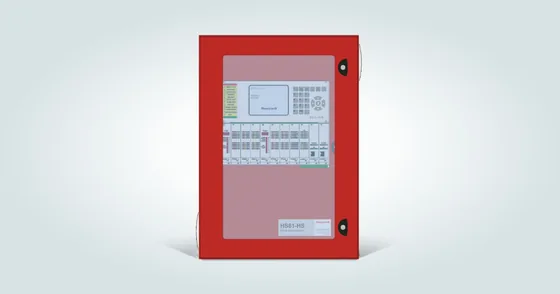

Dealer for HoneywellThe compact UL version of Honeywell's HS-81 fire and gas controller, with a single or double power supply, for industrial sites where space is tight. Like the EN version, it combines flame, gas and smoke detection, logic control, extinguishing release and alarm outputs in one panel.
Standards and approvals: UL-listed, SIL2, ATEX, IEC61508, IEC60079-29-1, IEC60079-29-3, UL864
| Specification | Details | Details | Details | Details |
|---|---|---|---|---|
| Input power | 110-240 VAC (± 10%) | |||
| Nominal output power | 24VDC | |||
| Maximum output power | 10A/20A (dual supply version) | |||
| Cabinet | sheetmetal with internal door and transparent outer door; stainless steel option available upon request | |||
| Color | RAL 7035 (Industrial Gray standard) and RAL 3000 (Red for fire, optional) | |||
| Protection degree | Cabinet rated for IP54/IP66, product | UL-listed for use in dry locations | |||
| Installation | wall mounting | |||
| Size | 27.5” (700mm) x 19.7” (500mm) x 9.8” (250mm) | |||
| Maximum batteries charging current | 4A, up to 65Ah. | Up to 14Ah allowed inside cabinet. Larger batteriesrequire use of a separate cabinet. | |||
| Protections | Surge, short-circuit, and reverse battery | |||
| Applicable Safety category | Up to SIL2 | |||
| Redundancy | CPU and Power Supply | |||
| IO Card Capacity | 08 nos. (Max) | |||
| Operating Temperature | -5 / +50 C | |||
| Max Humidity | 0-95% non condensing | |||
| HS81-HS/C-Single | UL Compact panel 8 slots, Double CPU, Single Power supply | |||
| HS81-HS/C-Double | UL Compact panel 8 slots Double CPU, Double Power supply | |||
| HS81-HS/C-Single-R | UL Compact 8 slots, Double CPU, Single supply - Red cab | |||
| HS81-HS/C-Double-R | UL Compact 8 slots Double CPU, Double supply - Red cab | |||
| HS81-HS/M-Single | Marine Compact panel 8 slots Double CPU, Single Power supply | |||
| HS81-HS/M-Single-R | Marine Compact 8 slots 2 CPU, 1 supply - Red cab |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
The compact EN version of Honeywell's HS-81 fire and gas controller, with a single or double power supply, for industrial sites where space is tight. It handles flame, gas and smoke detection, logic control, extinguishing release and alarm outputs from one panel.
A modular intelligent fire alarm control panel designed for small applications, which can be set up with a few devices or networked for a larger campus or high-rise.
A modular intelligent fire alarm control panel designed for mid-sized applications, which can be expanded through Notifier's intelligent fire alarm network.
A one loop, networkable analogue addressable panel from the Morley EN DXc range that uses the Morley protocol. It works on its own or in a network of DXc panels up to 16 loops.
A two loop, multi-protocol analogue addressable panel from the DXc range that supports the Morley protocol and networks with other DXc panels up to 16 loops.
Sizes: 2 Zone to 32 Zone
Microprocessor based fire alarm control panel with a backlit LCD, in 2, 4, 8, 16 and 32 zone versions, in a powder coated MS cabinet. Each zone shows fire, open, short and isolate, and Soft-Chip states it follows IS 2189:1999.
Cloud based fire alarm control panel with built-in Wi-Fi and an RJ45 LAN port, so panel health and zone alarms can be seen and controlled from the Soft-Chip Smart Alert app as well as on site. Status refreshes in less than 60 sec.
