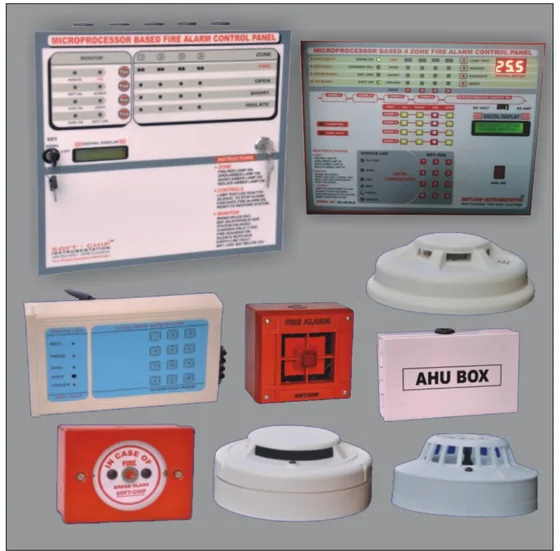

Authorised distributor for Soft-ChipMicroprocessor based fire alarm control panel with a backlit LCD, in 2, 4, 8, 16 and 32 zone versions, in a powder coated MS cabinet. Each zone shows fire, open, short and isolate, and Soft-Chip states it follows IS 2189:1999.
Standards and approvals: IS 2189:1999, IS 15908, CE, ERTL (North) tested, RoHS
Sizes: 2 Zone to 32 Zone
| Specification | 2 Zone | 4 Zone | 8 Zone | 16 Zone | 32 Zone |
|---|---|---|---|---|---|
| Power IP | AC 220 / 12x2/7Ah | AC 220 / 12x2/7Ah | AC 220 / 12x2/7Ah | AC 220 / 12x2/7Ah | AC 220 / 12x2/7Ah |
| End of Line | 4 K 7 | 4 K 7 | 4 K 7 | 4 K 7 | 4 K 7 |
| Detection o/p Supply | 24 V. DC (in twisted wire) must | 24 V. DC (in twisted wire) must | 24 V. DC (in twisted wire) must | 24 V. DC (in twisted wire) must | 24 V. DC (in twisted wire) must |
| Hooter o/p Supply | 24 V. DC | 24 V. DC | 24 V. DC | 24 V. DC | 24 V. DC |
| Dimensions | 350 x 310 x 90 | 350 x 310 x 90 | 440 x 325 x 90 | 440 x 475 x 90 | 510 x 610 x 90 |
Specifications as published by Soft-Chip. Please confirm the exact model with us before ordering.
Cloud based fire alarm control panel with built-in Wi-Fi and an RJ45 LAN port, so panel health and zone alarms can be seen and controlled from the Soft-Chip Smart Alert app as well as on site. Status refreshes in less than 60 sec.
The compact EN version of Honeywell's HS-81 fire and gas controller, with a single or double power supply, for industrial sites where space is tight. It handles flame, gas and smoke detection, logic control, extinguishing release and alarm outputs from one panel.
The compact UL version of Honeywell's HS-81 fire and gas controller, with a single or double power supply, for industrial sites where space is tight. Like the EN version, it combines flame, gas and smoke detection, logic control, extinguishing release and alarm outputs in one panel.
A modular intelligent fire alarm control panel designed for small applications, which can be set up with a few devices or networked for a larger campus or high-rise.
A modular intelligent fire alarm control panel designed for mid-sized applications, which can be expanded through Notifier's intelligent fire alarm network.
A one loop, networkable analogue addressable panel from the Morley EN DXc range that uses the Morley protocol. It works on its own or in a network of DXc panels up to 16 loops.
A two loop, multi-protocol analogue addressable panel from the DXc range that supports the Morley protocol and networks with other DXc panels up to 16 loops.
