Notifier ONYX NFS2-640E Intelligent Fire Alarm Control Panel
A modular intelligent fire alarm control panel designed for mid-sized applications, which can be expanded through Notifier's intelligent fire alarm network.

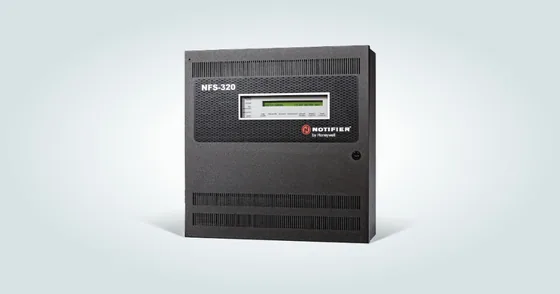

Dealer for NotifierNotifier ONYX NFS-320E Intelligent Fire Alarm Control Panel
A modular intelligent fire alarm control panel designed for small applications, which can be set up with a few devices or networked for a larger campus or high-rise.
- One isolated intelligent SLC, Style 4, 6 or 7
- Four standard notification circuits, 1.5 A each
- 80-character LCD display, fully field programmable
- Built-in alarm, trouble, security and supervisory relays
- Direct connection to the Notifier FirstCommand emergency communications system
- UL listed and FM approved, with CSFM, MEA, FDNY, U.S. Coast Guard, Lloyd's Register and ABS approvals
Standards and approvals: UL Listed: S635, ULC Listed: S635 (NFS-320C only, excludes IPDACT), FM Approved, CSFM: 7165-0028:0243, MEA: 128-07-E, Fire Dept. of New York: #6121, City of Chicago, US Coast Guard 161.002/50/0, 161.002/55/0 (Standard 46, Lloyd's Register 11/600013 (ENV 3 category), American Bureau of Shipping (ABS) Type Approval
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| NFS-320 | 120 VAC, 50/60 Hz, 5.0 A.: NFS-320E: 220/240 VAC, 50/60 Hz, 2.5 A. | |
| Current draw (standby/alarm) | , NFS-320(E) board: 0.250 A. Add 0.035 A for each NAC in use., KDM-R2 (Backlight on): 0.100 A. • Total output 24 V power: 6.0 A in alarm. | |
| Standard notification circuits (4) | 1.5 A each. | |
| Resettable regulated 24V power | 1.25 A. | |
| Two non-resettable regulated 24V power outputs | , 1.25 A., 0.50 A. • Non-resettable 5V power: 0.15 A. • Battery charger range: 18 AH, 200 AH. Use separate cabi- net for batteries over 26 AH. • Float rate: 27.6 V. | |
| NFS-320 cabinet dimensions | • Backbox: 18.12 in. (46.025 cm) width; 18.12 in. (46.025 cm) height; 5.81 in. (14.76 cm) depth. • Door: 18.187 in. (46.195 cm) width; 18.40 in. (46.736 cm) height; 0.75 in. (1.905 cm) depth. • Trim ring: Molding width is 0.905 in. (2.299 cm). • Shipping weight (without batteries): 36.15 lb. (16.4 kg). |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
