Notifier ONYX NFS-320E Intelligent Fire Alarm Control Panel
A modular intelligent fire alarm control panel designed for small applications, which can be set up with a few devices or networked for a larger campus or high-rise.

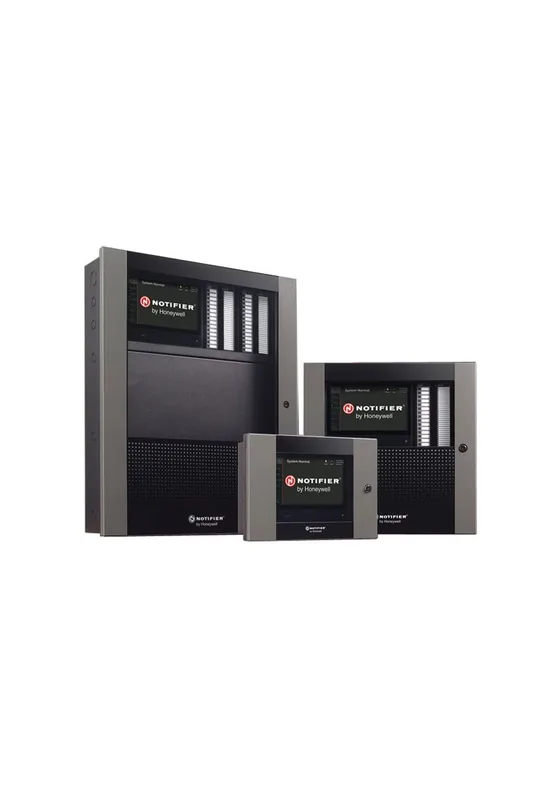

Dealer for NotifierNotifier INSPIRE N16X Modular Fire Alarm Control Panel
A modular INSPIRE panel with one to ten signalling line modules for up to 3,180 intelligent addressable devices, for stand-alone or networked systems in large high-rise and campus sites.
- One to ten signalling line modules, up to 3,180 devices
- Touchscreen display with icon and colour-coded event notification
- Options for single or multichannel integrated voice and firefighter's telephone
- Self-Test detector technology and A/V magnet test
- NOTI-FIRE-NET networking up to 200 nodes; optional CLSS cloud and mobile connection
- UL listed and FM approved, CSFM, FDNY, OSHPD; UL 864 and NFPA 72
Standards and approvals: UL Listed: S635, FM Approved, CSFM: 7165-0028:0516, Fire Dept. of New York: COA#001761, City of Chicago, Certified for Seismic applications in accordance with IBC, OSHPD Approved. OSP-0072, FM Approved: FM23FPUS0095, FDNY: COA#001761, OSHPD Approved: OSP-0072, UL 864, 10th edition, NFPA 72 National Fire Protection Association
Specifications
Specifications
| Specification | Details | Details | Details |
|---|---|---|---|
| PMB-AUX(-RTO) | 120VAC 50/60 Hz 2.5A, 240VAC 50/60 Hz, 1.25A | ||
| PMB-AUX | 0.96 A (standby), 0.110 A (alarm: CPU-N16: 0.116 A (standby), 0.116 A (alarm), Main Display: 0.153 A (standby), 0.163 A (alarm), NCD: 0.360 A (standby), 0.360 A (alarm), ACM-30: 0.087 A (standby), 0.087 A (alarm), SLM-318: 0.159 A (standby), 0.276 A (alarm), TM-8: 0.115 A (Standby), 0.278 A (Alarm), LDM2-32: 0.026 A (Standby), 0.050 A (Alarm), LDM2-60: 0.026 A (Standby), 0.059 A (Alarm) | ||
| Battery charger range | 7AH-210AH. Use separate cabinet for batteries over 26 AH. | ||
| Charging current | 1A, 2A, 4.25A, and 5.55A | ||
| Float Rate | 27.6 V. | ||
| N16e Shipping Weight | 35 lb | ||
| N16e Backbox dimensions | 19.12" H x 18.12" W x 5.47" D (48.6 cm h x 46 cm W x 13.9 cm D) | ||
| Voltage | 24VDC nominal, 27.6VDC maximum | ||
| Recommended wiring | Twisted unshielded pair 12 to 18 AWG (3.31mm²-0.082mm²) | ||
| Alarm current | 210mA, Standby current: 159mA, resistance: 50 ohms maximum, for single SLC loop: 400mA maximum. | ||
| Maximum resistance | 50 ohms (supervised and power-limited) |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
