A fire alarm control panel powers and watches the detectors and call points in a building, shows where an alarm or fault has occurred and switches on the sounders and other outputs. FPS offers conventional, addressable, repeater, releasing and fire and gas control panels from Honeywell, Notifier, Morley by Honeywell, Soft-Chip, Ceasefire, Agni, Ravel, Bosch and Siemens in Bhopal and across Madhya Pradesh.
The compact EN version of Honeywell's HS-81 fire and gas controller, with a single or double power supply, for industrial sites where space is tight. It handles flame, gas and smoke detection, logic control, extinguishing release and alarm outputs from one panel.
The compact UL version of Honeywell's HS-81 fire and gas controller, with a single or double power supply, for industrial sites where space is tight. Like the EN version, it combines flame, gas and smoke detection, logic control, extinguishing release and alarm outputs in one panel.
A modular intelligent fire alarm control panel designed for small applications, which can be set up with a few devices or networked for a larger campus or high-rise.
A modular intelligent fire alarm control panel designed for mid-sized applications, which can be expanded through Notifier's intelligent fire alarm network.
A modular intelligent fire alarm control panel supporting over 3,000 intelligent devices on ten signalling line circuits, for medium to large sites.
A scalable single panel in a standard preconfigured enclosure, with one signalling line module for 318 intelligent addressable devices, expandable to 954 devices on three loops.
A modular INSPIRE panel with one to ten signalling line modules for up to 3,180 intelligent addressable devices, for stand-alone or networked systems in large high-rise and campus sites.
A UL listed six-zone releasing panel for single and dual hazard deluge and preaction systems in commercial, industrial and institutional buildings.
A UL listed six-zone releasing panel for single and dual hazard deluge and preaction systems, with a seismic listing.

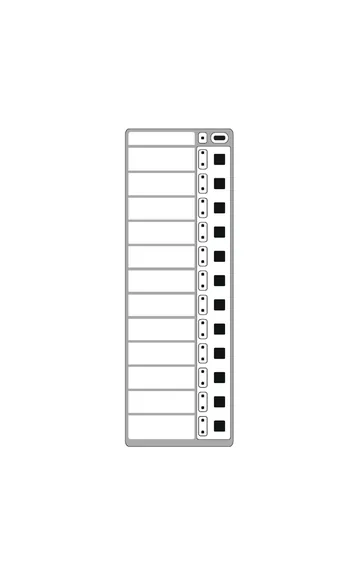

An ONYX ACS annunciator with 24 colour-programmable Active LEDs, 24 yellow Trouble LEDs and 24 touch-pad switches, plus a local sounder, for ONYX panels, network control annunciators and legacy addressable panels.

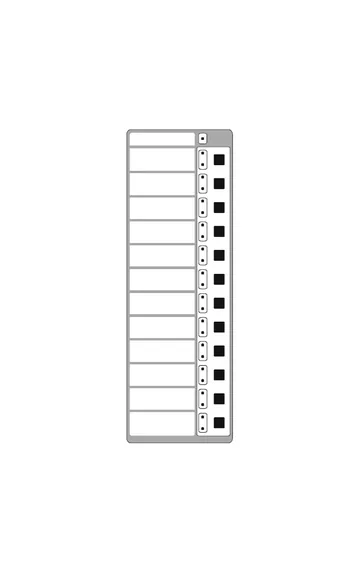

An expander that adds 24 system points to the ACM-24AT, matching it in size and front appearance, with up to three per annunciator for 96 points in all.

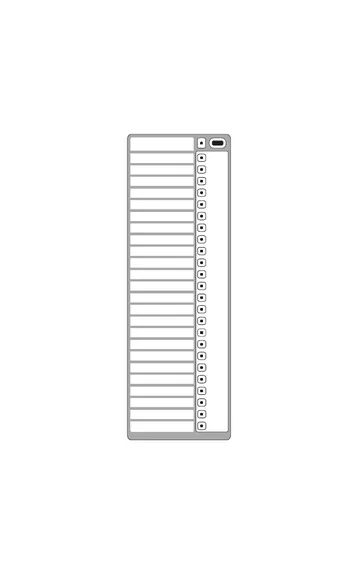

An ONYX ACS annunciator with 48 colour-programmable Active LEDs, a local sounder with silence switch, and System Trouble and On-Line/Power LEDs.

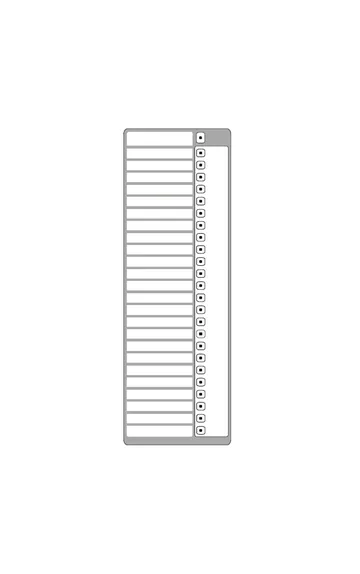

An expander that adds 48 system points to the ACM-48A, matching it in size and front appearance, for 96 points in all.

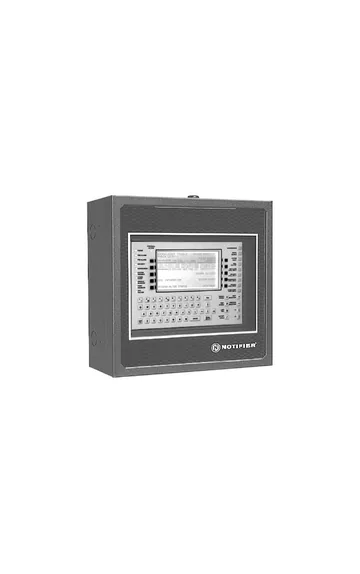

A second-generation network control annunciator for NOTI-FIRE-NET and High Speed NOTI-FIRE-NET, giving control and display for all or selected network nodes.

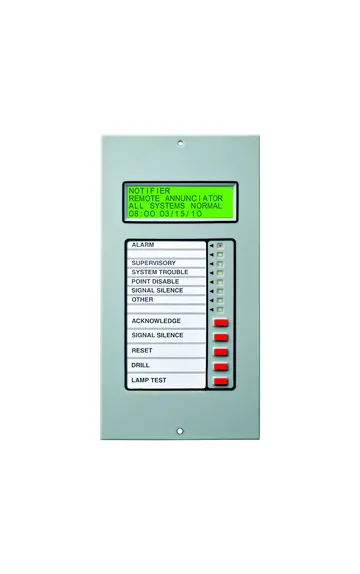

An 80-character backlit LCD annunciator for the NFS2-640, NFS2-3030, NFS-320, NCA-2 and legacy panels, giving remote reset, acknowledge, drill and silence.

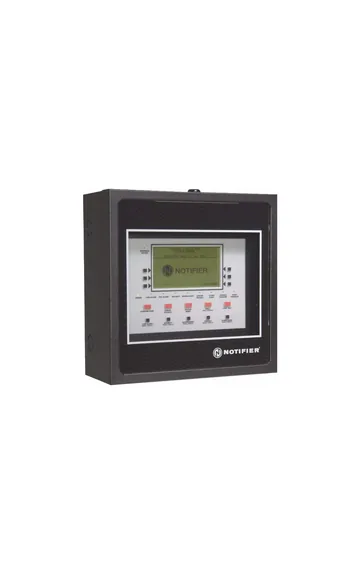

A 640-character LCD annunciator and remote control for the NFS-3030 and NFS2-3030 that mimics the top 160 characters of the panel display.

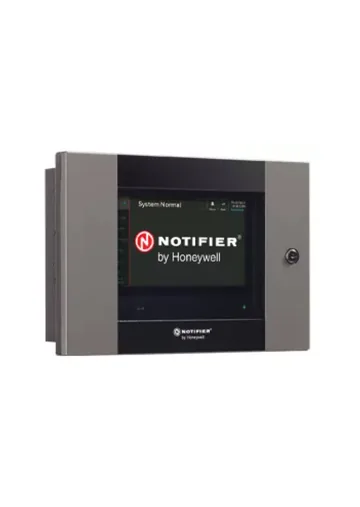

The next-generation network control annunciator with a 10 inch colour touch screen, compatible with INSPIRE N16e/x and ONYX NFS2-3030, NFS2-640 and NFS-320 nodes.

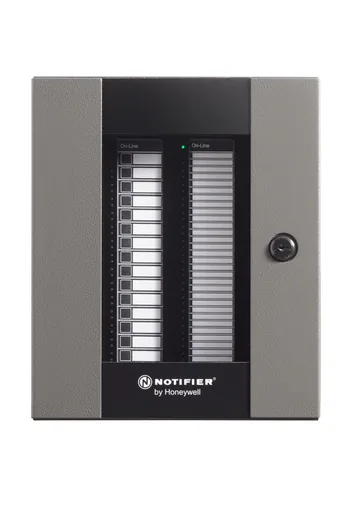

An INSPIRE annunciator that both shows system status and sends commands to the control panel, for INSPIRE panels and the Network Control Display.
A compact 5 inch colour touchscreen mimic annunciator for INSPIRE panels and the NCD, connected over the AIO bus four-wire EIA-485 port.

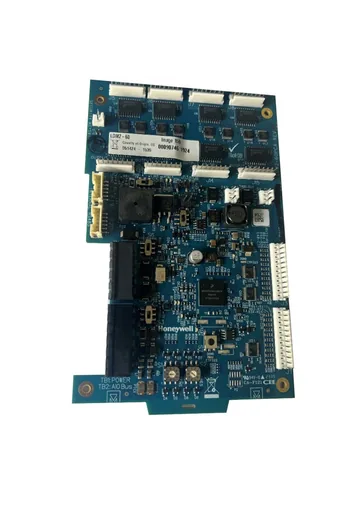

Lamp driver modules that, with a custom graphic display, give annunciation and control for INSPIRE panels and the Network Control Display.

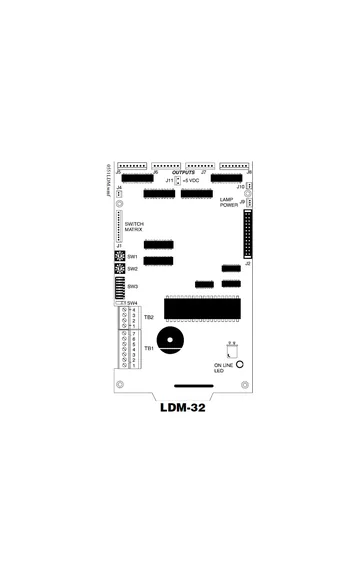

A lamp driver module with 32 alarm lamp-driver transistors that, with a custom graphic display, gives annunciation and control for ONYX and legacy Notifier panels up to 6,000 feet away.
A one loop, networkable analogue addressable panel from the Morley EN DXc range that uses the Morley protocol. It works on its own or in a network of DXc panels up to 16 loops.
A two loop, multi-protocol analogue addressable panel from the DXc range that supports the Morley protocol and networks with other DXc panels up to 16 loops.
The four loop panel of the DXc range, with a 24V DC 4A power supply, for larger buildings or as part of a network of DXc panels up to 16 loops.
A DXc range kit that combines a compact DXc fire alarm control panel with detectors and modules, for small to medium-sized buildings, and can be configured from an Android app over Bluetooth.
A one loop intelligent fire alarm control panel from the modular ZXSe range, with sounder circuits, a 2-line display and networking capability, listed to EN 54 parts 2 and 4.
A ZXSe range panel that runs one or two loops, with sounder circuits, a 2-line display and networking capability, listed to EN 54 parts 2 and 4.
The larger ZXSe panel, with one to five loops, 4 sounder circuits and a 4 line display, for sites that need more loops or a network of panels.
The simplest panel of the Morley Max series, with two Morley-IAS loops, a 7 inch colour touch display and cause and effect logic, networkable for multi-application sites.
The advanced panel of the Morley Max series, with four Morley-IAS loops expandable to eight, a 200W power supply and a 7 inch colour touch display.
A compact touchscreen panel for up to 159 addressable devices. It is designed for Agile radio equipment and identifies the installed sensors, input modules and sounder/VADs (visual alarm devices) once it connects to the radio system gateway.
A compact analogue single loop panel, expandable to two loops, that uses Honeywell's Advanced (AP) protocol and can be fully configured from its 4.3 inch colour touchscreen.
A compact intelligent panel in the Morley UL range, in a PC+ABS plastic enclosure, with a 5 inch multi-colour touchscreen and setup through mobile and PC apps over Bluetooth.
The metal bodied panel of the Morley UL range, in powder coated mild steel for a neat surface or flush finish, with a 5 inch multi-colour touch display, control keys and LED indicators.
A circuit-based fire alarm panel for Morley Lite series detectors, with 2, 4, 6 or 8 Class B detection circuits, programmable relays and customisable circuit text inserts that match the building's naming.

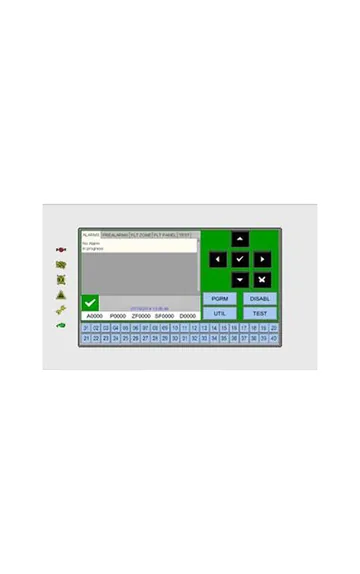

A compact, low profile repeater for Morley Max panels with a 7 inch TFT 256 colour touchscreen, which can run as an active repeater or as a virtual zonal mimic.

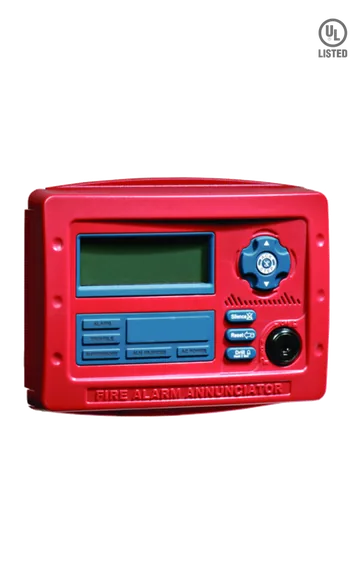

A compact backlit LCD annunciator for the Morley UL range that mimics the panel display and gives remote control of key system functions behind a key switch.

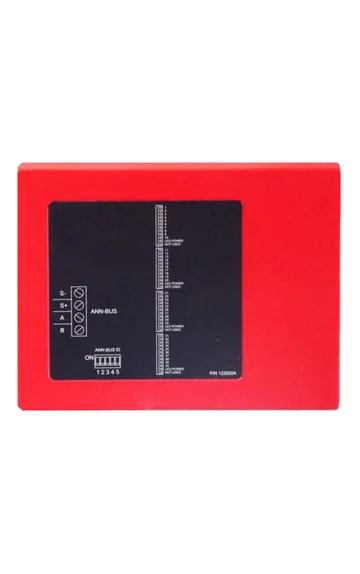

An LED driver module in a plastic enclosure that drives up to 40 LEDs, used to build custom graphic annunciators for the Morley UL range.
Sizes: 2 Zone to 32 Zone
Microprocessor based fire alarm control panel with a backlit LCD, in 2, 4, 8, 16 and 32 zone versions, in a powder coated MS cabinet. Each zone shows fire, open, short and isolate, and Soft-Chip states it follows IS 2189:1999.
Cloud based fire alarm control panel with built-in Wi-Fi and an RJ45 LAN port, so panel health and zone alarms can be seen and controlled from the Soft-Chip Smart Alert app as well as on site. Status refreshes in less than 60 sec.

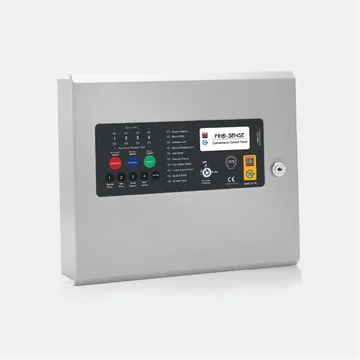

Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.

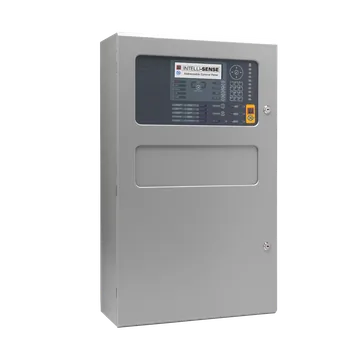

Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.

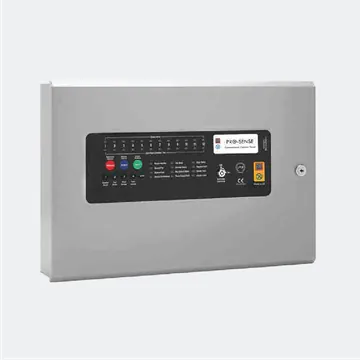

Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.

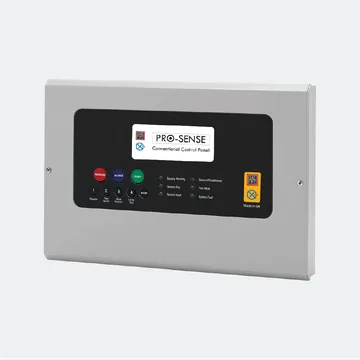

Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.

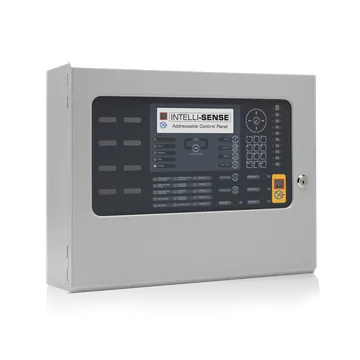

An addressable fire alarm control panel in 1, 2 and 4 loop versions, with 254 detectors and devices per loop in any combination. It has a 7 inch touch screen with keypad and a 10,000 event history.
A repeater panel that shows the fire alarm system's status at a second location, with a 7 inch touch screen and keypad that give controls for system reset, accept, mute and silence alarm.
A passive repeater that shows the fire alarm system's status on an LCD at a second location, such as a reception or security desk.
A conventional fire alarm control panel in 2, 4, 6 and 8 zone versions for small to medium installations. It watches each zone for fire, fault, open circuit and short circuit, and works with smoke and heat detectors, manual call points and sounders.
An Oriel series conventional fire alarm panel combined with a PA (public address) system for voice announcements. Agni publishes no details for it online, so FPS confirms the specification on enquiry.
Sizes: 2zEco, 4zEco
A conventional fire alarm control panel in 2 and 4 zone versions for small to medium installations. It watches each zone for fire, fault, open circuit and short circuit, and works with smoke and heat detectors, manual call points and sounders.
A multi loop analogue addressable panel that starts with one loop and expands to four, for up to 1016 devices, and can be networked with other Avani panels.
A loop card that plugs into a slot on the Avani panel's motherboard to add one addressable loop of up to 254 devices.
A compact repeater that shows all the indications of an Avani panel, standalone or on a network, at a remote location.
An active repeater for the Avani panel that gives full indication and control of the main panel at a remote location, with its own mains supply and battery backup.
A single loop analogue addressable panel for 127 devices plus 20 loop powered sounders, with touch keypad programming and USB laptop connection.
A repeater panel for the MonitI single loop panel, linked over RS 485, with a 160 character LCD.
A microprocessor based 2 zone conventional panel for small commercial buildings and small scale industries.
A standalone 2 zone conventional panel with an event log, built in USB and optional Ethernet and GSM modules.
A 4 zone conventional panel for small buildings, with lock and key access and a programmable keypad lock.
Compact 2 zone (RE-102R) and 4 zone (RE-104R) conventional panels in a black FR ABS plastic housing, field programmable from the keypad.
A microprocessor based 4 zone conventional panel that Ravel states fully complies with UL 864 and NFPA 72, for small and medium buildings.
A microprocessor based 8 zone conventional panel that Ravel states fully complies with UL 864 and NFPA 72, for small and medium buildings.
Sizes: 12 Zone to 128 Zone
A conventional panel series from 12 to 128 zones with a 20 x 4 LCD, touch keypad, event log and RS-485 networking, for small to large buildings.
A repeater panel for Ravel conventional panels, ordered for up to 8, 64 or 128 zones, with drill and evacuate controls.
A repeater panel that monitors RE-900 series panels over an RS-485 network, ordered for up to 32, 128 or 256 zones.
A compact modular addressable fire panel kit for small to medium systems with a standard license panel controller, in a wall-mount or frame-mount housing.
The AVENAR panel 2000 modular addressable fire panel kit with a premium license panel controller, adding evacuation functions, in a wall-mount or frame-mount housing.
The central touchscreen controller of an AVENAR panel 8000 with a premium license, adding interfaces for building management, hierarchy panels and voice alarm systems.
The central touchscreen controller of an AVENAR panel 8000 with a standard license, which defines network size and fire detection features. Bosch's page gives no technical data table for this part.
A remote operating panel with the same user interface as the fire panel, for operating a networked AVENAR system from another location. Bosch's page gives no technical data table for this part.
A conventional fire panel for small and medium sized buildings, in 2 zone (FPC-500-2), 4 zone (FPC-500-4) and 8 zone (FPC-500-8) versions.
A remote parallel display for Bosch LSN fire alarm systems with 32, 64 or 96 multicolour LEDs, for example to show up to 96 detection zones.

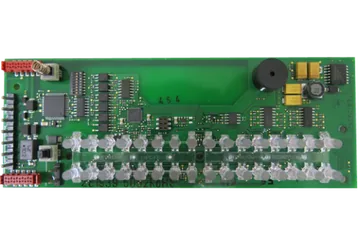

A 32 LED display module that fits inside the BAT 100 LSN housing and shows the condition of field devices or detection zones.

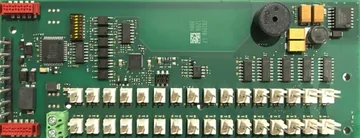

A freely programmable module with 32 outputs that drives LEDs or other low current devices to display the status and events of field devices.
A compact stand-alone Cerberus PRO panel with integrated operating unit for up to 126 addresses, for smaller sites such as workshops and hotels; the FC721-YZ adds 1 LED indicator.
A compact Cerberus PRO panel for up to 252 addresses on 2 loops, expandable to 4, for medium-sized sites or as part of a network; offered in Standard or Comfort housing, with or without LED indicators.
The 252-address FC722 panel in Comfort housing with an EVAC operating unit, for medium-sized sites or networked systems.
The 252-address FC722 panel in Standard housing with the components for connection to the Cerberus Cloud.
A modular Cerberus PRO panel for up to 756 addresses, expandable to 12 loops with line cards, designed for modernising SynoLOOP installations and for large, complex buildings.
A compact Cerberus PRO panel for up to 504 addresses on 4 loops, expandable to 8, for large sites such as industrial plants, regional banks and office complexes; the FC724-ZE adds a 2 LED indicator.
The 504-address FC724 panel in Comfort housing with an EVAC operating unit, for large sites or networked systems.
The 504-address FC724 panel in Comfort housing with the components for connection to the Cerberus Cloud.
The largest Cerberus PRO panel in this range: modular, for up to 1512 addresses, expandable to 28 loops, for very large and complex buildings such as office buildings and university campuses.
A compact Sinteso panel for up to 252 addresses on 2 loops, expandable to 4, for smaller sites such as workshops and hotels or as part of a network; in Comfort or Standard housing.
A modular Sinteso panel for up to 756 addresses, designed to modernise existing installations with up to 200 MS9i detectors or 16 collective lines in a gradual move to Sinteso.
A compact Sinteso panel for up to 504 addresses on 4 loops, expandable to 8, for industrial plants, office complexes and networked systems; in Comfort or Large housing.
The largest Sinteso panel in this range: modular, for up to 1512 addresses, taking Sinteso and older collective, MS9i, DS11, Synova 600 and SIGMACON detectors.
A Cerberus FIT addressable panel for up to 126 devices on one loop, for smaller installations such as workshops, smaller hotels, schools, stores and residential homes.
A Cerberus FIT addressable panel for up to 252 devices on two loops, for smaller installations such as workshops, smaller hotels, schools, stores and residential homes.
A conventional fire control panel with integrated operating unit for 2 zones, for small applications such as schools, shops and hotels.
A conventional fire control panel with integrated operating unit for 4 zones, for small applications such as schools, shops and hotels.
A conventional fire control panel with integrated operating unit for 8 zones, for small applications such as schools, shops and hotels.
A conventional fire control panel with integrated operating unit for 12 zones, for small applications such as schools, shops and hotels.
An operating panel installed away from the central fire control panel, networkable over C-WEB/SAFEDLINK, with an optional power supply of its own.
The FT724 remote fire terminal fitted with an EVAC (evacuation) operating unit, for networked Cerberus PRO systems.
A small floor repeater that shows and operates events from Sinteso FS20 and Cerberus PRO FS720 systems, with a 6 line by 40 character backlit plain text display.
A display-only floor repeater for Sinteso FS20 and Cerberus PRO FS720 systems, with a 6 line by 40 character backlit plain text display.
A loop-powered driver for mimic display panels, with 2x 24 LED outputs and an integrated line separator.
A Sinteso operating panel installed away from the central fire control panel, networkable over FCnet/SAFEDLINK and connectable to the Siemens Danger Management System.
An EN 54-2 indication and operating unit with a touch front panel, for Siemens wall-mounted or desktop housings or the 19 inch pedestal housing of the FC2080.
A floor repeater display connected to STT30-2 fire safety equipment, showing its events and those of the fire detection systems for users who only need to view the main functions.
Start with the system type. A conventional panel divides the building into zones, each a group of detectors and call points on one circuit, so it shows which area is in alarm but not which device. Sizes run from 2 zones to 128: Agni Oriel and Eco (2 to 8 zones, up to 25 detectors per zone), Bosch FPC-500 (2, 4 or 8 zones), Siemens Cerberus FIT (2 to 12 zones), Morley Lite (2 to 8 circuits), Ceasefire and the Soft-Chip Mono Series (2 to 32 zones), and Ravel (2 to 8 zones, plus the RE-900 series from 12 to 128 zones). Approvals differ: Soft-Chip and Agni list IS 2189:1999, Ceasefire EN 54-2 and 4, Bosch VdS, Siemens LPCB, and Ravel UL 864 and NFPA 72 for its RE-2554, RE-2558 and RE-900 panels. Leave spare zones for later extension.
An addressable panel gives every detector, call point and module its own address on a loop, so it shows the exact device in alarm; the devices must use the panel's own protocol. Agni FYRLAAST (1, 2 or 4 loops), Ravel Avani (1 to 4 loops) and Bosch AVENAR panel 2000 (up to four loop modules) take 254 devices per loop, Ceasefire Intelli-Sense 240 (1 to 8 loops), and Morley UL panels 159 detectors and 39 modules. Morley by Honeywell DXc, ZXSe and Max panels run 1 to 8 loops and can be networked. Siemens rates its panels by addresses, from 126 up to 1512 on the modular FC726 and Sinteso FC2060, and Notifier panels reach 3,180 devices on the INSPIRE N16X. Count your devices, divide by the loop capacity and keep room for growth.
If the main panel sits in a plant room or basement, add a repeater or annunciator from the same family at the reception or security desk. A display only unit shows status, while an active repeater or remote terminal also lets staff accept, silence and reset there. Ceasefire, Agni and Ravel offer repeaters and remote displays for their own panels (Ravel versions up to 256 zones), Morley Max the MA-LCD7 touchscreen repeater, Bosch the FPE-8000-FMR remote keypad and BAT 100 LSN LED display, Siemens remote fire terminals and floor repeaters, and Notifier LCD and LED annunciators up to the INSPIRE NCD with a 10 inch touch screen. For a mimic panel on a building plan, add an LED driver such as the Bosch ATB 420 LSNi, Morley by Honeywell 315-040, Notifier LDM-32 or Siemens FT2001.
Finally, check special needs. For evacuation, the Bosch FPA-2000-PWM and PFM kits add evacuation functions, the Siemens FC722-HA and FC724-HA carry an EVAC operating unit, the Notifier INSPIRE N16X has integrated voice options and Agni offers an Oriel panel with a PA system. The Notifier RP-2001(E) and RP-2002(E) are six zone releasing panels for deluge and preaction sprinklers, designed for NFPA 13, 15 and 16. The Honeywell HS-81 fire and gas controller for industrial sites has redundant hot-swappable CPUs, in EN (EN 54-2) and UL (UL 864) versions, both SIL2. The Siemens FC723, FC2030 and FC2060 modular panels help modernise older SynoLOOP or collective installations. For unmanned sites, the Soft-Chip cloud panel reports 8 zones to the Smart Alert app, and the Siemens FC722-ZZG and FC724-ZAG connect to the Cerberus Cloud through an X200 gateway.
