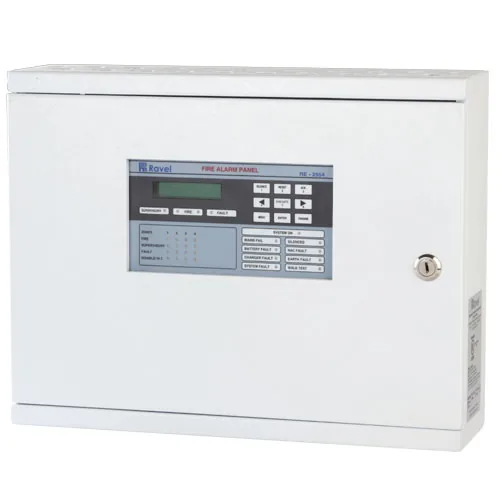

Dealer for RavelRavel 4 Zone Conventional Fire Alarm Panel, UL 864
A microprocessor based 4 zone conventional panel that Ravel states fully complies with UL 864 and NFPA 72, for small and medium buildings.
- 4 zone detection circuits, 16 x 2 LCD
- 3 common potential free contacts and 2 sounder outputs
- Built in RS-485 for a repeater
- Programmable AC loss delay, trouble reminder and alarm verification
- Surge protection on all inputs and outputs
- Ravel states full compliance with UL 864 and NFPA 72
Standards and approvals: UL -864, NFPA-72
Specifications
Specifications
| Specification | Details | Details | Details | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|---|---|---|
| Primary Power | 120 to 220VAC ± 10%, 50 Hz, 2.5Amps. | ||||||||
| Standby Power | 24V D.C (2 Nos of 12v, 12Ah Sealed Lead acid battery). | ||||||||
| Quiescent current | 120mA | ||||||||
| Initiating Device Circuits | All zones are Class B Style B/C operation (Programmable). | ||||||||
| Normal Operating Voltage | 14 to 21 VDC. | ||||||||
| Alarm Current | 15 to 30mA. | ||||||||
| Short Circuit Current | 45mA Maximum. | ||||||||
| Loop resistance | 100 ohms Maximum. | ||||||||
| End-Of-Line Resistor | 3K9, 1/2watt | 3K9, 1/2watt | |||||||
| Standby Current | 7mA (2mA for Detectors) | ||||||||
| Operating Condition | Operating Temperature 0 to 49° C/32-120° F. | Relative Humidity 93 ± 2% RH (non- condensing) at 32 ±2° C/90 ±3° F. | ||||||||
| Charging Circuit | Charging Voltage 28.2V, ±0.5V | Charging Current 800mA (Max.). | ||||||||
| Notification Appliance Circuits | Class B Style: Y wiring | ||||||||
| Operating Nominal Voltage | 24VDC | ||||||||
| Special Application Current for all NACs | 1.2Amps (0.6A per circuit) | ||||||||
| Line Drop | 1.8V | ||||||||
| D.C. Output | Supervised 24VDC regulated, 300mA Max. | ||||||||
| Type | Form C | ||||||||
| No of Relays | 3 | ||||||||
| Relay Contact Rating | 2Amps @ 30 VDC, 0.5Amps @ 125VAC. | ||||||||
| Power Factor | 1.0 | ||||||||
| Dimensions | (440W X 340H X 120D) | ||||||||
| Color | Red / White | ||||||||
| Construction | 18 Gauge (1.22mm) CRCA sheet with powder-coated Finish | ||||||||
| IP Rating | IP50 | ||||||||
| Cable Entry | 11xø19mm Knockout in top of the cabinet 10xø22.25mm Knockout in top of the cabinet |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
