Ravel Avani Analogue Addressable Fire Alarm Panel, 1 to 4 Loops
A multi loop analogue addressable panel that starts with one loop and expands to four, for up to 1016 devices, and can be networked with other Avani panels.

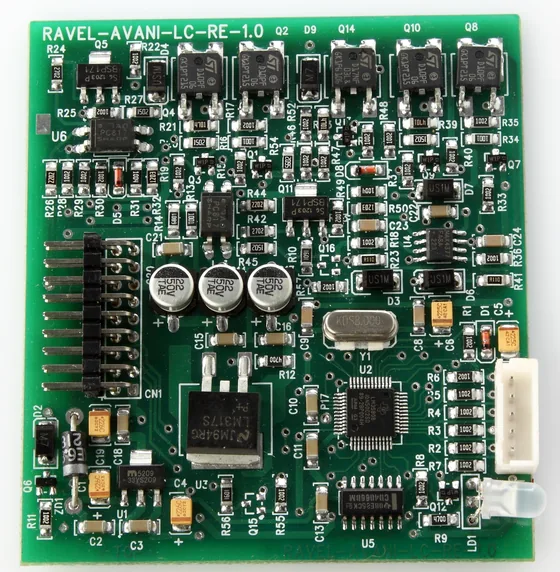

Dealer for RavelRavel Avani Loop Card
A loop card that plugs into a slot on the Avani panel's motherboard to add one addressable loop of up to 254 devices.
- Up to 254 devices of any mix per loop
- Auto learning and loop wise device test
- Programmable for Class A (Style 5, 6 or 7) or Class B (Style 4) wiring
- Dual colour LED shows loop status
- Works with Ravel addressable detectors, call points and modules
Specifications
Specifications
| Specification | RE-LC |
|---|---|
| No of Devices per loop | 254 Devices. |
| Loop resistance | 40 Ohms (Max.). |
| Loop Capacitance | 0.6 micro farad (Max.). |
| Loop current | 300 mA (Max.). |
| Operating Voltage | 24 VDC |
| Operating Temperature | 0-49 deg;C / 32-120 deg;F Ohms Max. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/90 ±3° F. |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
