Notifier ONYX NFS-320E Intelligent Fire Alarm Control Panel
A modular intelligent fire alarm control panel designed for small applications, which can be set up with a few devices or networked for a larger campus or high-rise.

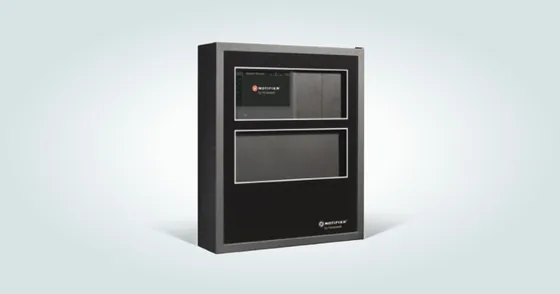

Dealer for NotifierNotifier ONYX NFS2-640E Intelligent Fire Alarm Control Panel
A modular intelligent fire alarm control panel designed for mid-sized applications, which can be expanded through Notifier's intelligent fire alarm network.
- Isolated intelligent SLCs, Style 4, 6 or 7
- 16 line, 640 character backlit LCD, or display-less as a network node
- Programmable on the panel or on a PC with VeriFire Tools
- ONYX Intelligent Sensing: nine sensitivity levels, maintenance alert and auto detector test
- Four standard notification circuits, 1.5 A each
- UL and ULC listed, FM approved, with CSFM, MEA, FDNY, CCCF, U.S. Coast Guard, Lloyd's Register and ABS approvals
Standards and approvals: UL Listed: S635, ULC Listed: S635, FM Approved, MEA: 128-07-E, Fire Dept. of New York: #6121, CSFM: 7165-0028:0243, City of Chicago, City and County of Denver, CCCF listed, US Coast Guard 161.002/50/0, 161.002/55/0 (Standard 46, Lloyd's Register 11/600013 (ENV 3 category), American Bureau of Shipping (ABS) Type Approval
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Primary input power | , CPU2-640 board: 120 VAC, 50/60 Hz, 5.0 A.: CPU2-640E board: 220/240 VAC, 50/60 Hz, 2.5 A. • Current draw (standby/alarm):, CPU2-640(E) board: 0.250 A. Add 0.035 A for each NAC in use., KDM-R2: 0.100 A., LEM-320: 0.100 A. • Total output 24 V power: 6.0 A in alarm. | |
| Standard notification circuits (4) | 1.5 A each. | |
| Resettable regulated 24V power | 1.25 A. | |
| Two non-resettable regulated 24V power outputs | , 1.25 A., 0.50 A. • Non-resettable 5V power: 0.15 A. • Battery charger range: 18 AH, 200 AH. Use separate cab- inet for batteries over 26 AH. • Float rate: 27.6 V. | |
| CPU2-640/-640 | 14.3 lb (6.49 kg). | |
| CPU2-640/-640E | 14.55 lb (6.60 kg). |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
