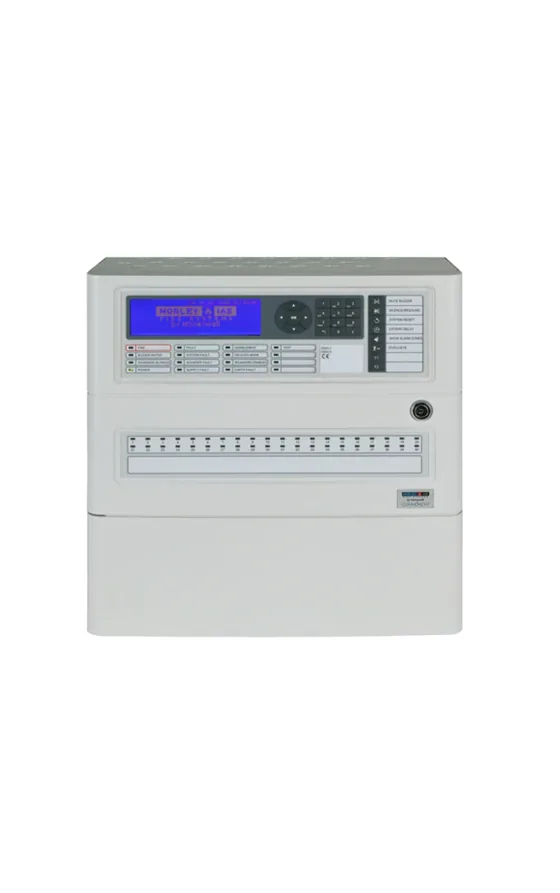

Dealer for Morley by HoneywellA two loop, multi-protocol analogue addressable panel from the DXc range that supports the Morley protocol and networks with other DXc panels up to 16 loops.
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
| Specification | 714/001/225 |
|---|---|
| DIMENSIONS [MM] (H X W X D) | 391.5 x 390 x 147 |
| WEIGHT (EXCLUDING BATTERIES) | 4.5kg |
| COLOUR | RAL 9002 - Grey white |
| MOUNTING HOLES | 3 |
| OPERATING TEMPERATURE | 0°C to +40°C |
| RELATIVE HUMIDITY | 5% - 95% non-condensing |
| MATERIAL | Mild steel sheet rear enclosure. ABS plastic front cover to BS EN60950. All displays and controls are carried on the enclosure door. |
| OPERATING VOLTAGE | 110 / 230V AC +/-15% |
| STAND-BY BATTERIES | 2 x 17Ah |
| AUXILLIARY OUTPUT | +24V DC 250mA fused |
| 714/001/225 | DXc2 Two loop Fire Alarm Control Panel |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
A one loop, networkable analogue addressable panel from the Morley EN DXc range that uses the Morley protocol. It works on its own or in a network of DXc panels up to 16 loops.
The four loop panel of the DXc range, with a 24V DC 4A power supply, for larger buildings or as part of a network of DXc panels up to 16 loops.
A DXc range kit that combines a compact DXc fire alarm control panel with detectors and modules, for small to medium-sized buildings, and can be configured from an Android app over Bluetooth.
A one loop intelligent fire alarm control panel from the modular ZXSe range, with sounder circuits, a 2-line display and networking capability, listed to EN 54 parts 2 and 4.
A ZXSe range panel that runs one or two loops, with sounder circuits, a 2-line display and networking capability, listed to EN 54 parts 2 and 4.
The larger ZXSe panel, with one to five loops, 4 sounder circuits and a 4 line display, for sites that need more loops or a network of panels.
The compact EN version of Honeywell's HS-81 fire and gas controller, with a single or double power supply, for industrial sites where space is tight. It handles flame, gas and smoke detection, logic control, extinguishing release and alarm outputs from one panel.
The compact UL version of Honeywell's HS-81 fire and gas controller, with a single or double power supply, for industrial sites where space is tight. Like the EN version, it combines flame, gas and smoke detection, logic control, extinguishing release and alarm outputs in one panel.
A modular intelligent fire alarm control panel designed for small applications, which can be set up with a few devices or networked for a larger campus or high-rise.
A modular intelligent fire alarm control panel designed for mid-sized applications, which can be expanded through Notifier's intelligent fire alarm network.
Sizes: 2 Zone to 32 Zone
Microprocessor based fire alarm control panel with a backlit LCD, in 2, 4, 8, 16 and 32 zone versions, in a powder coated MS cabinet. Each zone shows fire, open, short and isolate, and Soft-Chip states it follows IS 2189:1999.
Cloud based fire alarm control panel with built-in Wi-Fi and an RJ45 LAN port, so panel health and zone alarms can be seen and controlled from the Soft-Chip Smart Alert app as well as on site. Status refreshes in less than 60 sec.
