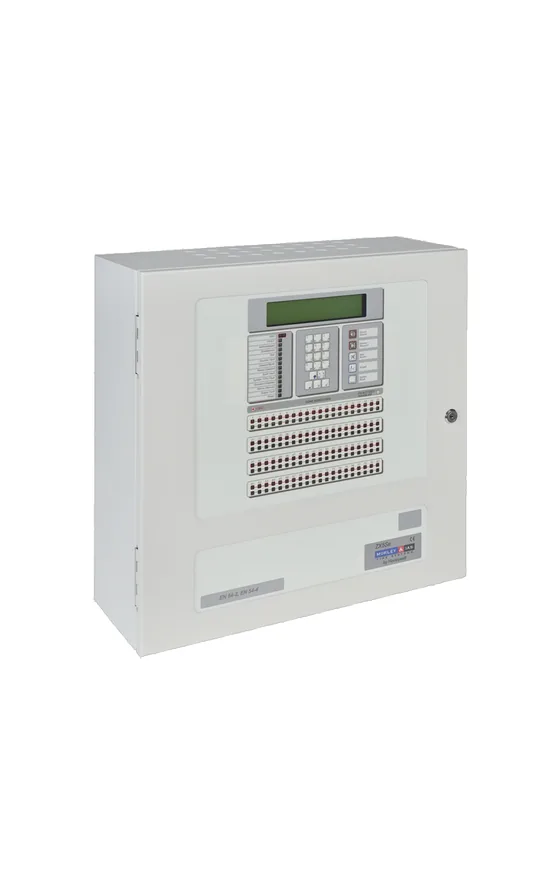

Dealer for Morley by HoneywellThe larger ZXSe panel, with one to five loops, 4 sounder circuits and a 4 line display, for sites that need more loops or a network of panels.
Standards and approvals: EN54 Parts 2 & 4
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
| Specification | 721-001-301 |
|---|---|
| DIMENSIONS (MM) | 500 x 500 x 195 (H x W x D) |
| WEIGHT (WITHOUT BATTERIES) | 20 kg |
| COLOUR | RAL 9002 - Grey white |
| TEMPERATURE | 0ºC to + 40ºC |
| HUMIDITY | 85% non-condensing (max) |
| CONSTRUCTION | Sheet steel painted, sealed to IP30 |
| CABLE ENTRY | 24 x 20mm knock-outs top 24 x 20mm knock-outs bottom |
| OPERATING VOLTAGE | 230V AC 50Hz (+10%,-15%) |
| PSU RATING | 8.6A total, comprised of 2.25A min @ 25V (panel supply) 2.5A min @ 35V (loop supply) 1.66A min @ 12V (printer supply) 2.2A min charger current |
| LOOP LOAD | 460mA per loop maximum |
| MINIMUM CAPACITY | 2 x 12V 7Ah |
| MAXIMUM CAPACITY | 2 x 12V 12Ah |
| ZX5Se Loop Capacity | 1 to 5 loops 460mA per loop maximum |
| 721-001-301 | ZX5Se Fire Alarm Control Panel |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
