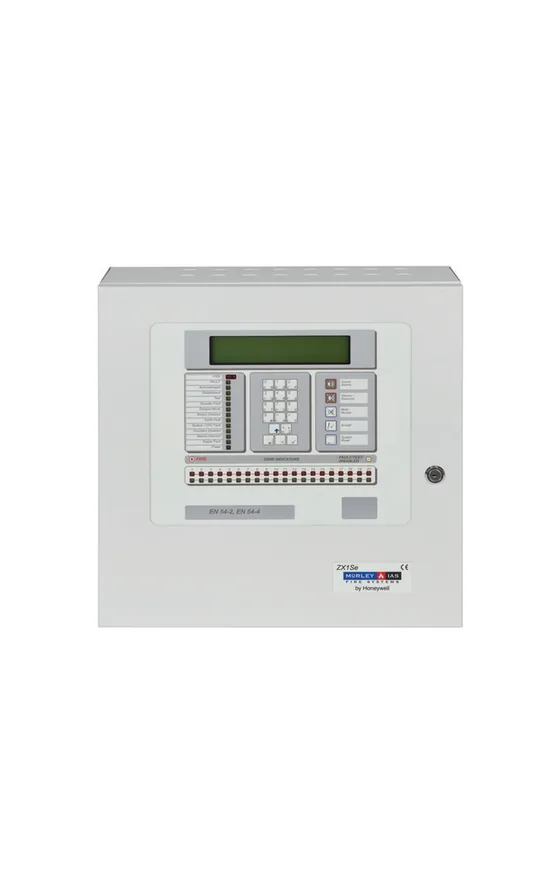

Dealer for Morley by HoneywellA one loop intelligent fire alarm control panel from the modular ZXSe range, with sounder circuits, a 2-line display and networking capability, listed to EN 54 parts 2 and 4.
Standards and approvals: EN54 Parts 2 & 4
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
| Specification | 722-001-301 |
|---|---|
| DIMENSIONS (MM) | 400 x 400 x 135 (H x W x D) |
| WEIGHT (WITHOUT BATTERIES) | 10 kg |
| COLOUR | RAL 9002 - Grey White |
| TEMPERATURE | 0ºC to + 40ºC |
| HUMIDITY | 85% non-condensing (max) |
| CONSTRUCTION | Sheet steel painted, sealed to IP30 |
| OPERATING VOLTAGE | 230V AC 50Hz (+10%,-15%) |
| PSU RATING | 4.2A total, comprised of 2.5A min @ 25V (panel and loop supply) 1.75A min charger current |
| LOOP LOAD | 460mA maximum |
| MINIMUM CAPACITY | 2 x 12V 7Ah |
| MAXIMUM CAPACITY | 2 x 12V 12Ah |
| ZX1Se Loop Capacity | 1 loop 460mA maximum |
| 722-001-301 | ZX1Se Fire Alarm Control Panel |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
