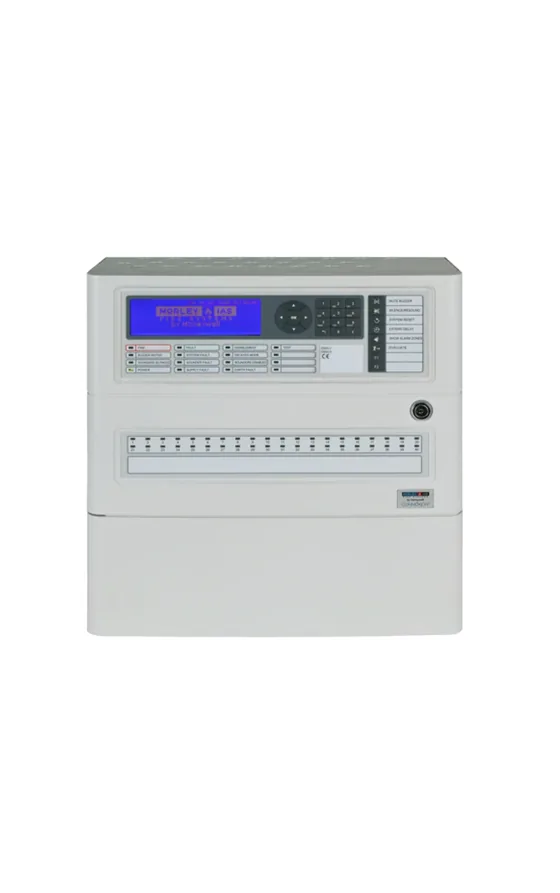

Dealer for Morley by HoneywellThe four loop panel of the DXc range, with a 24V DC 4A power supply, for larger buildings or as part of a network of DXc panels up to 16 loops.
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
| Specification | 714/001/245 |
|---|---|
| DIMENSIONS [MM] (H X W X D) | 391.5 x 390 x 147 |
| WEIGHT (EXCLUDING BATTERIES) | 4.5kg |
| COLOUR | RAL 9002 - Grey white |
| MOUNTING HOLES | 3 |
| OPERATING TEMPERATURE | 0°C to +40°C |
| RELATIVE HUMIDITY | 5% - 95% non-condensing |
| MATERIAL | Mild steel sheet rear enclosure. ABS plastic front cover to BS EN60950. All displays and controls are carried on the enclosure door. |
| OPERATING VOLTAGE | 110 / 230V AC +/-15% |
| PSU RATING | 24V DC 4A |
| STAND-BY BATTERIES | 2 x 17Ah |
| AUXILLIARY OUTPUT | +24V DC 250mA fused |
| 714/001/245 | DXc4 Four loop Fire Alarm Control Panel |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
