Notifier ONYX NFS-320E Intelligent Fire Alarm Control Panel
A modular intelligent fire alarm control panel designed for small applications, which can be set up with a few devices or networked for a larger campus or high-rise.

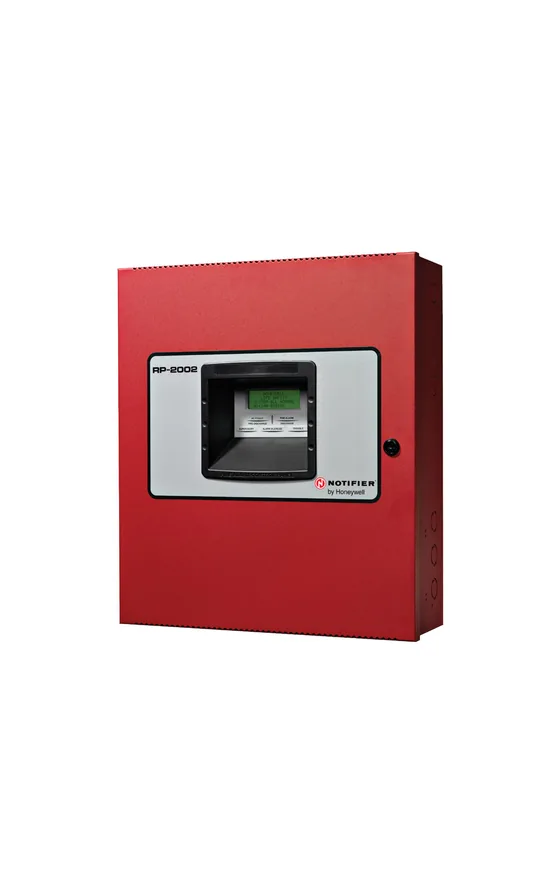

Dealer for NotifierNotifier RP-2002(E) Conventional Releasing Control Panel
A UL listed six-zone releasing panel for single and dual hazard deluge and preaction systems, with a seismic listing.
- Designed for sprinkler standards NFPA 13, 15 and 16
- Single or dual-hazard operation
- Cross-zone (double-interlock) capability
- Six programmable Style B (Class B) initiating device circuits
- UL listed and FM approved, with CSFM, MEA and seismic listings
Standards and approvals: UL: S635, FM approved, CSFM: 7165-0028:0245, MEA: 333-07-E, Seismic Listing: Reference certificiate of compliance
Specifications
Specifications
| Specification | Details | Details | Details |
|---|---|---|---|
| RP-2002 (FLPS-7 Power Supply) | 120 VAC, 60 Hz, 3.66 amps | ||
| RP-2002E (FLPS-7 Power Supply) | 240 VAC, 50/60 Hz, 2.085 amps | ||
| Wire size | minimum 14 AWG (2.0 mm²) with 600 V insula- tion, supervised, nonpower-limited | ||
| Door | 19.26" (48.92 cm.) high x 16.82" (42.73 cm.) wide x 0.72" (1.82 cm.) deep. Backbox: 19.00" (48.26 cm.) high x 16.65" (42.29 cm.) wide x 5.25" (13.34 cm.) deep. Trim Ring (TR- CE): 22.00" (55.88 cm.) high x 19.65" (49.91 cm.) wide. | ||
| Weight | 24.05 lbs. (10.9 kg) | ||
| Dimensions | , Height 20.00" (50.80cm), Width 22.50" (57.15cm), Depth 8.50" (21.59cm) | ||
| Alarm Systems requirements | , NFPA 12 CO2 |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
