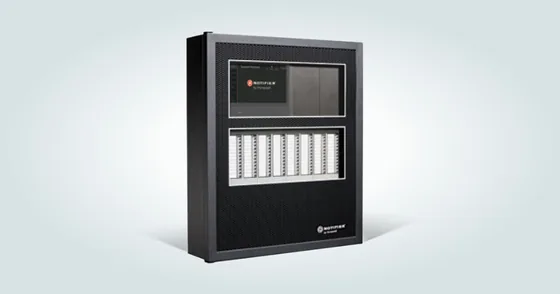

Dealer for NotifierNotifier ONYX NFS2-3030D Intelligent Fire Alarm Control Panel
A modular intelligent fire alarm control panel supporting over 3,000 intelligent devices on ten signalling line circuits, for medium to large sites.
- One to ten isolated intelligent SLCs, Style 4, 6 or 7
- 640-character LCD for fire, fire progression and evacuation information
- NOTI-FIRE-NET networking and ONYXWorks, up to 200 nodes
- Built-in degraded mode option, EIA-485 annunciators including custom graphics
- SWIFT wireless and FM 6320 approved gas detection
- Battery charger range 7 AH to 200 AH
Standards and approvals: UL Listed: S635, ULC Listed: S635, MEA: 232-06-E, Fire Dept. of New York: COA#6114, CSFM: 7165-0028:0224 (Commercial), FM Approved, FM6320 Approved. Class 6320 for Gas Detection, City of Chicago, City of Denver, Singapore Productivity and Standards Board (PSB), CCCF listed, Fire Services Department (Hong Kong), US Coast Guard 161.002/55/0 (Standard 46 CFR and, Lloyd's Register 11/600013 (ENV 3 category), American Bureau of Shipping (ABS) Type Approval
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Primary Input Power | , AMPS-24: 110-120 VAC, 50/60 Hz, 4.5 A maximum.: AMPS-24E: 240 VAC, 50/60 Hz, 2.25 A maximum. | |
| DC Output | , Main 24 VDC: Up to 5.0 A, Aux 24 VDC: Up to 5.0 A, 5 VDC: Up to 0.15 A. | |
| Current draw (Standby/Alarm) | , CPU2-3030D board: 0.340 A., CPU2-3030ND board: 0.120 A., LCM-320: 0.130 A., LEM-320: 0.100 A., AMPS-24(E)*: 0.13 A. (Draws power from secondary power source only.) | |
| Battery charger range | 7 AH: 200 AH. Use separate cabinet for batteries over 26 AH. | |
| Float Rate | 27.6 V. | |
| CPU2-3030D | 5.95 lb (2.70 kg). | |
| CPU2-3030ND | 2.90 lb (1.32 kg). |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
