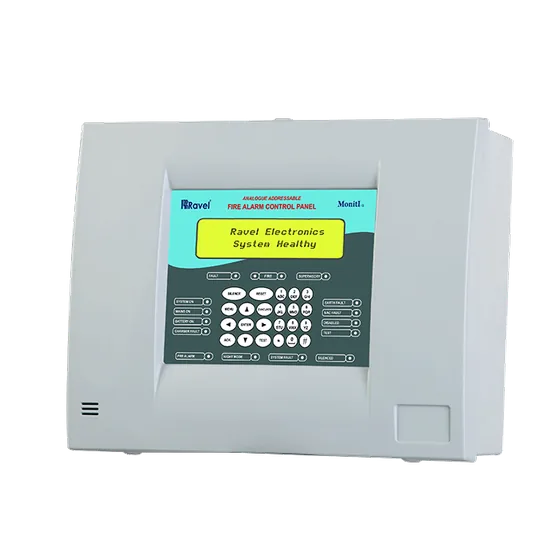

Dealer for RavelRavel MonitI Single Loop Addressable Fire Alarm Panel
A single loop analogue addressable panel for 127 devices plus 20 loop powered sounders, with touch keypad programming and USB laptop connection.
- 127 devices of any mix, plus 20 loop powered sounders
- Supports one repeater panel
- Touch keypad, built in USB, front panel programming
- Auto learning of loop devices
- Battery polarity and deep discharge protection, surge protection
- Ravel states CE approval
Standards and approvals: CE
Specifications
Specifications
| Specification | MonitI |
|---|---|
| Primary Power | 120 / 220VAC + 10% -15%, 60 / 50 Hz |
| Standby Power | 12V DC(1 No. of 12V,4.5Ah Sealed Lead acid battery) |
| Operating Temperature | 0-49° C/32-120° F. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/ 90 ±3° F. |
| Signaling Line Circuits | Class A or Class B wiring. |
| No Devices | Max. 127 devices exclusive of loop sounder |
| Loop resistance | 40Ω (Max.). |
| Loop capacitance | 0.6 µf (Max.). |
| Loop Current | 300mA (Max.). |
| Notification Appliance Circuits | Class B, Style: Y wiring |
| Operating Nominal Voltage | 24 VDC |
| Current for NAC | 1.0A |
| Line Drop | 2.4V |
| End-Of-Line Resistor | 4K7, ½ watt |
| D.C. Output | 24VDC regulated, 300mA Max. |
| Type | Form C |
| No of Relays | 1 |
| Relay Contact Rating | 2A @ 30 VDC,0.5A @ 125VAC |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
