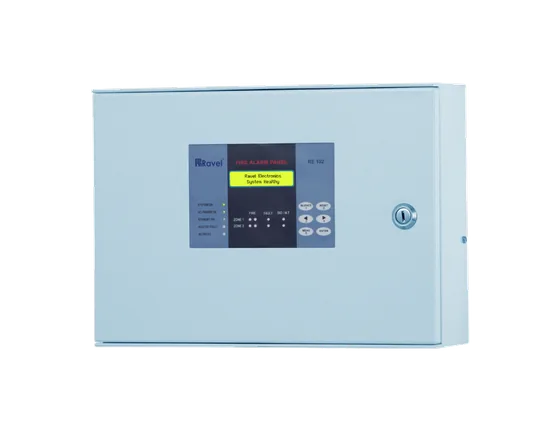

Dealer for RavelRavel 2 Zone Conventional Fire Alarm Panel
A microprocessor based 2 zone conventional panel for small commercial buildings and small scale industries.
- 2 zone detection circuits, 16 x 2 LCD
- 3 common potential free contacts and a common sounder output
- Battery backup with built in charging, switch mode power supply
- Battery polarity and deep discharge protection
- Wall or ceiling mounting, IP50
- Ravel lists IS-15908:2011 and CE marking
Standards and approvals: CE, IS -15908: 2011
Specifications
Specifications
| Specification | Details | Details | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|---|---|
| Primary Power | 120 to 220VAC, 50 Hz | |||||||
| Type | Form C | |||||||
| No of Relays | 3 | |||||||
| Relay Contact Rating | 2Amps @ 30 VDC, 0.5Amps @125VAC. | |||||||
| Power Factor | 1 | |||||||
| Standby Power | 24V D.C (2 Nos of 12v, 7Ah Sealed Lead acid battery). | |||||||
| Quiescent current | 55mA | |||||||
| Operating Temperature | 0 to 49° C/32-120° F. | |||||||
| Relative Humidity | 93 ± 2% RH (non- condensing) at 32 ±2° C/90 ±3° F. | |||||||
| Initiating Device Circuits (Zone Circuit) | All zones are Class B wiring | |||||||
| Normal Operating Voltage | 14- 21 VDC | |||||||
| Alarm Current | 15 to 30mA | |||||||
| Short Circuit Current | 42mA Maximum | |||||||
| Loop resistance | 50 ohms Maximum | |||||||
| End-Of-Line Resistor | 4.7K, 1/4watt | 4K7, 1/4 watt | ||||||
| Standby Current | 6.8mA (2.4mA for Detectors) | |||||||
| Charging Circuit | Charging Voltage 28.2V, ±0.5V | Charging Current 0.5 A (Max.). | |||||||
| Notification Appliance Circuits | Class B wiring | |||||||
| Operating Nominal Voltage | 24VDC | |||||||
| Current for NACs | 0.6 Amp | |||||||
| Dimensions | (350W X 250H X 100D) | |||||||
| Color | Red / White | |||||||
| Construction | 18 Gauge (1.22mm) CRCA sheet with powder-coated Finish | |||||||
| IP Rating | IP50 | |||||||
| Cable Entry | 11xø19mm Knockout in top of the cabinet |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
