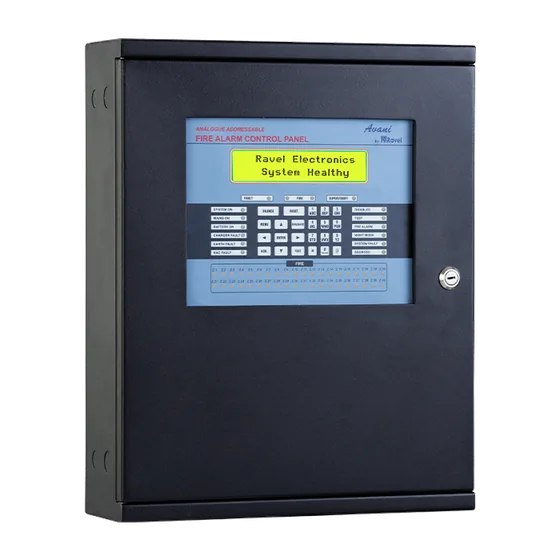

Dealer for RavelRavel Avani Analogue Addressable Fire Alarm Panel, 1 to 4 Loops
A multi loop analogue addressable panel that starts with one loop and expands to four, for up to 1016 devices, and can be networked with other Avani panels.
- 1 loop, expandable to 4 loops, 254 devices per loop
- Networkable, up to 8 panels in a node
- Touch keypad, built in USB for laptop connection, front panel programming
- Loop redundancy, surge protection and battery polarity protection
- Standby: two 12 V sealed lead acid batteries, up to 40 Ah
- Ravel states UL certification (9th edition)
Standards and approvals: UL
Specifications
Specifications
| Specification | Avani: W / R / B |
|---|---|
| Primary Power | 120 / 220VAC + 10% -15%, 60 / 50 Hz |
| Type | Form C |
| No of Relays | 3 |
| Relay Contact Rating | 2A @ 30 VDC, 0.5A @ 125VAC. |
| Standby Power | 24V D.C (2 No’s of 12V, 40 Ah (Max), Built in for 12Ah) | Sealed Lead acid battery |
| Loop card | 4 Nos. Maximum. |
| No Devices per loop | 254 |
| Loop capacitance | 0.6 µf (Max.). |
| Loop Current | 300mA (Max.). |
| Charging Circuit | Charging Voltage 28 V, ±0.2V Nominal | Charging Current 1.2A (Max.). |
| Initiating Device Circuits | Class B Style B/C Operation. |
| No of Conventional Zone | 1 |
| Alarm Current | 15 to 30mA. |
| Notification Appliance Circuits | Class B, Style: Y wiring |
| No of circuits | 2 |
| Operating Nominal Voltage | 24 VDC Nominal |
| NAC: 1 | 0.9A |
| NAC: 2 | 0.9 A |
| Line Drop | 2.4V |
| D.C. Output | Supervised 24VDC, 300mA Max. |
| Dimensions | (400W X 500H X 120D)mm |
| Color | White / Red / Black |
| Construction | 16 Gauge (1.6 mm) CRCA sheet with powder-coated Finish |
| IP Rating | IP50 |
| Cable Entry | 9xø19mm Knockout in top of the cabinet 9xø22.25mm Knockout in top of the cabinet |
| Weight | 13 Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
