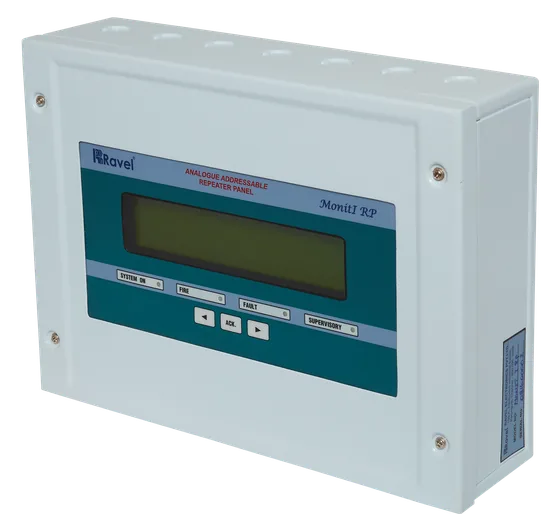

Dealer for RavelRavel MonitI Repeater Panel
A repeater panel for the MonitI single loop panel, linked over RS 485, with a 160 character LCD.
- 160 character (40 x 4) LCD display
- RS 485 link to the MonitI panel
- One programmable Form C relay for fire
- Common fire and fault LEDs
- Ravel states EN54 compliance and CE approval
Standards and approvals: EN54, CE
Specifications
Specifications
| Specification | MonitI-RP-W/B/R |
|---|---|
| Primary Power | 120 / 220VAC + 10% -15%, 60 / 50 Hz |
| Standby Power | 12V DC(1 No. of 12V,4.5Ah Sealed Lead acid battery) |
| Operating Temperature | 0-49° C/32-120° F. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/ 90 ±3° F. |
| Type | Form C |
| No of Relays | 1 |
| Relay Contact Rating | 2A @ 30 VDC, 0.5A @ 125VAC |
| Dimensions | (200W X 140H X 50D)mm |
| Color | White / Red / Black |
| Construction | 18 Gauge (1.22 mm) CRCA sheet with powder-coated Finish |
| IP Rating | IP50 |
| Cable Entry | 8xø19mm Knockout in top of the cabinet |
| Weight | 5Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
