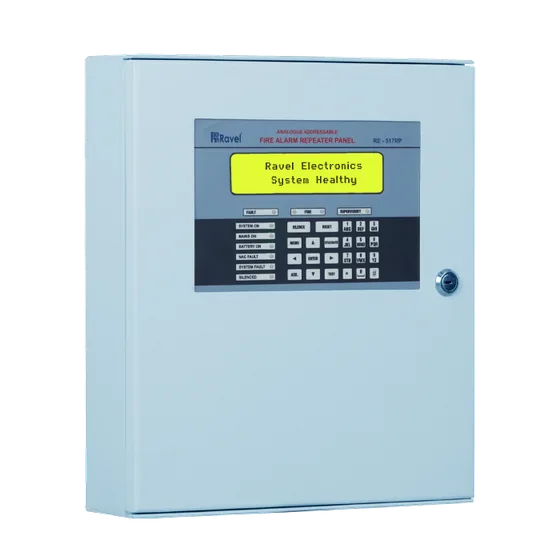

Dealer for RavelRavel RE-517RP Active Repeater Panel for Avani
An active repeater for the Avani panel that gives full indication and control of the main panel at a remote location, with its own mains supply and battery backup.
- Full indication and controls of the main Avani panel
- 160 character (40 x 4) LCD display
- RS485 link, with communication faults indicated
- 120 / 220 V AC mains with two 12 V, 7 Ah batteries
- One programmable Form C relay, lamp test
Specifications
Specifications
| Specification | RE-517RP-W/R/B |
|---|---|
| Primary Power | 120 / 220VAC + 10% -15%, 60 / 50 Hz, 2 Amps. |
| Standby Power | 24V D.C (2 Nos of 12v, 7Ah (Max.) Sealed Lead acid battery) |
| Operating Temperature | 0 to 49° C/32-120° F. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/90 ±3° F. |
| Charging Voltage | 28V ± 0.2V Nominal |
| Charging Current | 0.8A (Max.). |
| No of circuits | 1 |
| Wiring Style | Class B, Style: Y wiring |
| Operating Nominal Voltage | 24 VDC Nominal |
| Current for NACs | 1 Amps |
| Line Drop | 2.4V |
| End-Of-Line Resistor | 4K7, ½ watt |
| Type | Form C |
| No of Relays | 1 |
| Relay Contact Rating | 2A @ 30 VDC, 2A @ 30VAC. |
| Dimensions | (350W X 400H X 90D) mm |
| Color | White / Red / Black |
| Construction | 16 gauge (1.6mm) CRCA sheet with powder-coated finish |
| IP Rating | IP50 |
| Cable Entry | 8xø19mm Knockout at the top of the cabinet |
| Weight | 6 Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
