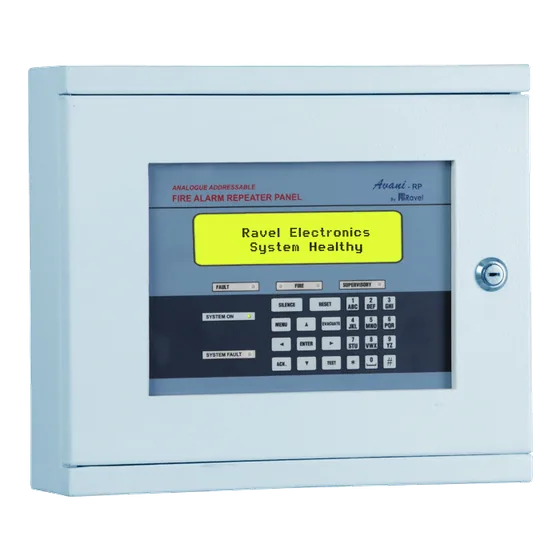

Dealer for RavelRavel Avani Repeater Panel
A compact repeater that shows all the indications of an Avani panel, standalone or on a network, at a remote location.
- 160 character (40 x 4) LCD display
- RS 485 link to the Avani panel, with communication faults indicated
- Event storage with real time clock
- One programmable Form C relay for fire
- Common fire, supervisory and fault LEDs, lamp test
- Ravel states UL listing (9th edition)
Standards and approvals: UL
Specifications
Specifications
| Specification | AVANI-RP-W/B/R |
|---|---|
| Operating Voltage | 24VDC |
| Quiescent Current | 80 mA |
| Alarm Current | 130mA |
| Operating Temperature | 0-49° C/32-120° F. |
| Relative Humidity | 93 ± 2% RH (non-condensing) at 32 ±2° C/ 90 ±3° F. |
| Type | Form C |
| No of Relays | 1 |
| Relay Contact Rating | 2A @ 30 VDC, 0.5A @ 125VAC |
| Dimensions | (350W X 300H X 90D)mm |
| Color | White / Red / Black |
| Construction | 18 Gauge (1.22 mm) CRCA sheet with powder-coated Finish |
| IP Rating | IP50 |
| Cable Entry | 9xø19mm Knockout in top of the cabinet 9xø22.25mm Knockout in top of the cabinet |
| Weight | 5Kg |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
