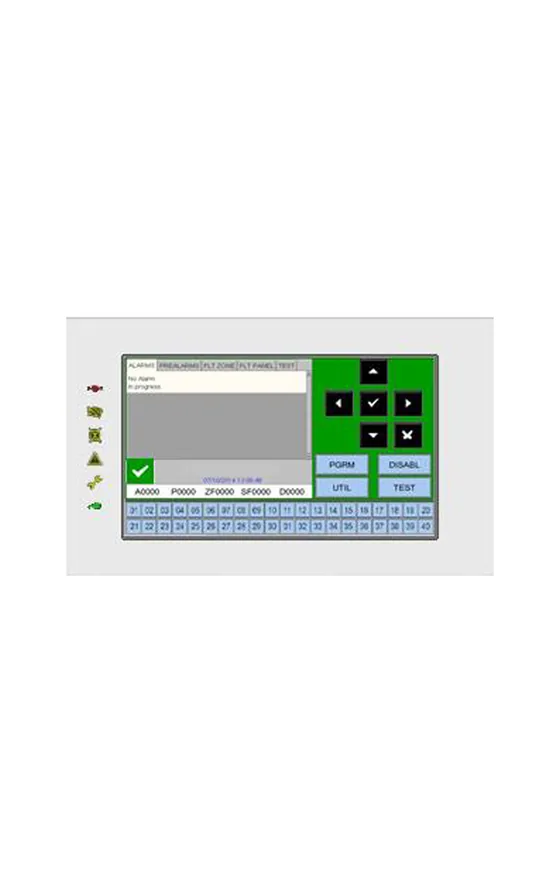

Dealer for Morley by HoneywellMorley by Honeywell Max MA-LCD7 Repeater and Zonal Mimic, 7 Inch Touchscreen
A compact, low profile repeater for Morley Max panels with a 7 inch TFT 256 colour touchscreen, which can run as an active repeater or as a virtual zonal mimic.
- 7 inch TFT 256 colour touchscreen with Max tabs and colour coded events
- Active repeater or virtual zonal mimic with 80 virtual zones (range 1 to 2000)
- RS485 2-wire serial link, USB type A port
- 11/30Vdc supply, 73mA quiescent current at 24Vdc
- 500g, IP30 panel sealing, -5°C to +50°C; Easy Fix plate included
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | MA-LCD7 |
|---|---|
| Length | 220.7mm |
| Width | 37.7mm* |
| Height | 132.7mm |
| Weight | 500g |
| RAL | Plastic Body (RAL9002), Gloss Frame (RAL7035) |
| Max Wire gauge for terminals | 0.5mm2 to 2.5mm2 |
| Operating voltage | 11/30Vdc |
| Quiescent Current | 73mA at 24Vdc |
| Alarm Current | 130.6mA at 24Vdc |
| Communication Medium | RS485 2-wire serial link |
| USB port | Type A |
| Operating temperature range | -5˚C to +50˚C |
| Storage temperature range | -10˚C to +60˚C |
| Humidity | 95% (non-condensing) |
| Panel Sealing | IP30 |
| MA-LCD7 | Max Repeater/Zonal Mimic with 7” colour touch display. Includes Easy Fix plate |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
