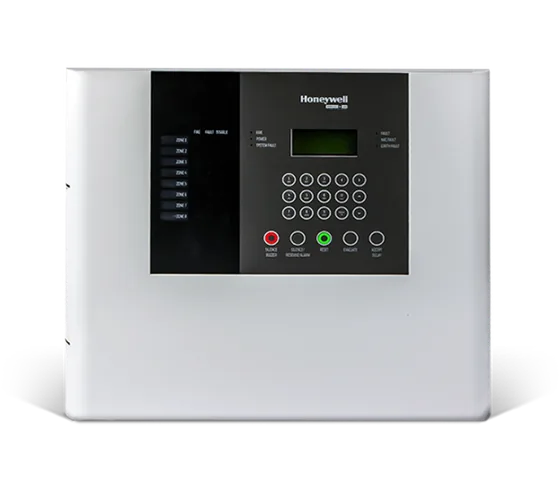

Dealer for Morley by HoneywellA circuit-based fire alarm panel for Morley Lite series detectors, with 2, 4, 6 or 8 Class B detection circuits, programmable relays and customisable circuit text inserts that match the building's naming.
Standards and approvals: IEC 62368-1:2018
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
| Specification | Details | Details | Details |
|---|---|---|---|
| Dimensions (H X W X D) | 360 X 422 X 122.8 mm (Front Facia), 360 X 380 X 92.3 mm (Back Box) | ||
| Weight | 5.8 Kg Approx. (No Battery Fitted) | ||
| Construction | Powder coated Cold Rolled STEEL 1.2mm thick | ||
| Cable Entry | 15 X 20mm Knockout | ||
| Operating Temperature | 0 to 49°C | ||
| Relative Humidity | 5% to 95% Non-Condensing | ||
| Operating Voltage | 230V-AC +/- 20% Output current 2A maximum, Alarm Load 1A Maximum | ||
| Standby Batteries | Minimum capacity 2 x 12 V 2.8Ah, Maximum capacity 2 x 12 V 7 Ah | ||
| Detection Circuits | 2, 4, 6, 8 Class B Circuit, Max 2mA per Detect or Circuit | ||
| Approved Detectors | Honeywell Morley Lite Series | ||
| Programmable Inputs | Configurable (Alarm, Reset, Evacuate) | ||
| HML/100/2A | Morley Lite 2 Circuit Class B Fire Alarm Control Panel | ||
| HML/100/4A | Morley Lite 4 Circuit Class B Fire Alarm Control Panel | ||
| HML/100/6A | Morley Lite 6 Circuit Class B Fire Alarm Control Panel | ||
| HML/100/8A | Morley Lite 8 Circuit Class B Fire Alarm Control Panel |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
