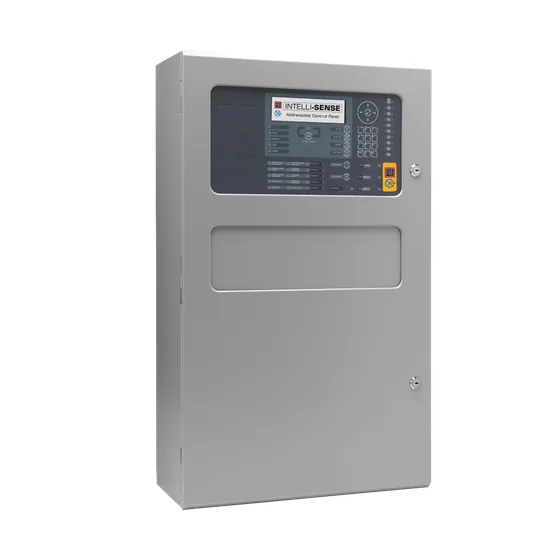

Authorised distributor for CeasefireAddressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Standards and approvals: EN 54-2:1998, EN 54-4:1998, EN54-13:2005, EN54
| Specification | TI-002320-FT | TI-002320-ST |
|---|---|---|
| Type | Addressable | Addressable |
| Model | TI-002320-FT | TI-002320-ST |
| Base Technology | Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets | Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets |
| Display | White backlit 240 x 64 graphical LCD | White backlit 240 x 64 graphical LCD |
| LED Indicators | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 7 bi-colour (Fault & System) | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 7 bi-colour (Fault & System) |
| Controls | Alpha numeric keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x Programmable Push Buttons Actual 2 | Alpha numeric keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x Programmable Push Buttons Actual 2 |
| Protocol | Fully digital communication protocol | Fully digital communication protocol |
| Number of Fire Zones | 2000 (200 per individual panel) | 2000 (200 per individual panel) |
| Number of Loops | Dedicated 2-8 loop control panel | Dedicated 2-8 loop control panel |
| Devices per Loop | 240 Addressable Detectors and Devices | 240 Addressable Detectors and Devices |
| Loop Current | 500mA | 500mA |
| On-Board Sounder Circuits | 8x1 Amp programmable | 8x1 Amp programmable |
| On-Board Relays | 4x1Amp 30vAC/DC programmable (10mA,5vmin)-expandable to 8 using 2x TI-002370 (2-Way Relay Card) | 4x1Amp 30vAC/DC programmable (10mA,5vmin)-expandable to 8 using 2x TI-002370 (2-Way Relay Card) |
| Auxiliary Supply | 2 x 24v500mA | 2 x 24v500mA |
| Programmable Input | 2 x monitored programmable input on-board | 2 x monitored programmable input on-board |
| Programmable Key Switch Inputs | 16 volt free digital inputs | 16 volt free digital inputs |
| Total Available Output Current | 2 x 5A maximum available for loop current + sounder outputs + auxiliary supply | 2 x 5A maximum available for loop current + sounder outputs + auxiliary supply |
| Mains Supply | 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4Amax | 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4Amax |
| Battery Capacity | 2 x 24V4Ah internal(min),2x24V,18Ah internal(max), or 1x24V45Ah internal(max) and1x24V 45Ah external (max) using optional battery enclosure | 2 x 24V4Ah internal(min),2x24V,18Ah internal(max), or 1x24V45Ah internal(max) and1x24V 45Ah external (max) using optional battery enclosure |
| Charger Current | 2 x 2A temperature compensated | 2 x 2A temperature compensated |
| Serial Port | 2 x on-board RS232 connection for PC, modem, IP, or portable printer | 2 x on-board RS232 connection for PC, modem, IP, or portable printer |
| USB Interface | 2 x USB B type connection for PC communication | 2 x USB B type connection for PC communication |
| Programming | On-board keypad or PC running Windows tools | On-board keypad or PC running Windows tools |
| Event Log | 2 x 5000 event & diagnostic + 500 fire | 2 x 5000 event & diagnostic + 500 fire |
| Networking | On-board Fault-tolerant network card (TI-002324). | On-board Standard network card (TI-002325). |
| Printer (optional) | On-board | On-board |
| Enclosure/Colour | Steel IP30 /RAL7035 | Steel IP30 /RAL7035 |
| Cable Entry (20mm knockouts) | 30 x top, 6 x rear, 3 x bottom plus 2 x double knockout rear | 30 x top, 6 x rear, 3 x bottom plus 2 x double knockout rear |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
