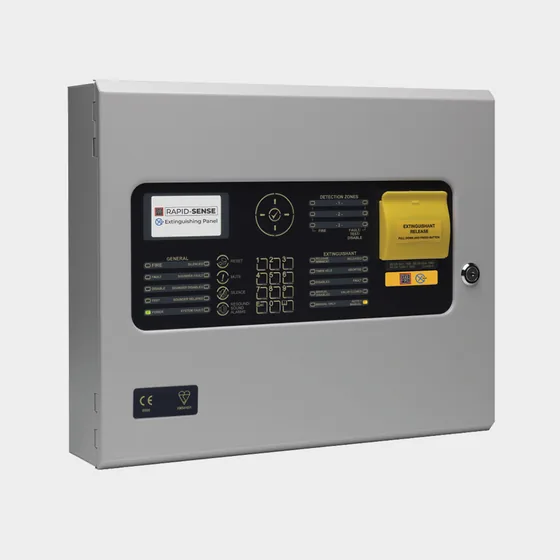

Authorised distributor for CeasefireConventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.
| Specification | TI-002341 |
|---|---|
| Type | Conventional Extinguishing Control Panel |
| Model | TI-002341 |
| Base technology | Flash-based processor |
| Display | Backlit 128 x 64 LCD |
| Remote status indicators | Supported via RS485 (maximum of 7) |
| Controls | Alphanumeric keypad, navigation keys and system keys for Reset, Mute, Silence/Resound and Sound alarms |
| Detection zones | 3 x conventional detection zones (inc. support for I.S. barrier) |
| Extinguishing zones | 1 x flooding/extinguishing zones. Support for solenoid and metron type actuators |
| Onboard sounder circuits | 3 x 700mA, 21-28VDC |
| Onboard relays | 4 x 1A, 30VDC relay outputs (Fire, Fault & 2 x programmable) |
| Auxilliary supply | 2 x 400mA aux supply outputs 21-28VDC (1 switched) |
| Programmable outputs | Support for 8 additional programmable outputs via additional output card |
| Switch inputs | 4 x programmable, 1 x manual trigger, 6 x release related (Mode Select, Valve Monitor, Pressure Monitor, Hold, Abort, Flow) |
| Countdown timer | On board, large digit |
| Mains supply | 3A universal switch mode PSU |
| Battery capacity | 24V 7Ah |
| Charger current | 1A |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.
Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.
Networked terminal that shows information from across an Intelli-Sense-NeT network and gives Mute, Reset, Silence and Resound controls. Sector based keys let each building on a multi building site control only the fires in its own building.
A microprocessor based 2 zone panel that detects a fire and releases a gaseous agent, with main and standby cylinder output and several release options.
A microprocessor based 4 zone agent release panel with two release circuits and solenoid coil monitoring, which Ravel states is UL listed.
A compact XC360 series panel for one extinguishing sector, handling detection, evaluation and alarm for up to 126 addressable devices from the Cerberus FIT and Cerberus PRO ranges over C-NET.
The XC360 series single-sector panel for Sinteso peripherals over FDnet, with detection and alarm for up to 126 addressable devices on one loop.
Microprocessor based panel that controls a gas flooding suppression system, with single or cross zone logic, a pre discharge warning and a 24 VDC gas release output. It includes programmable countdowns, manual abort and false release protection.
