A gas release control panel watches the detectors in a protected room, warns the people inside and then fires the gas suppression system after a countdown, with abort and manual release switches around it. FPS offers gas release and extinguishing control panels, release and abort switches and accessories from Ceasefire, Ravel, Siemens and Soft-Chip in Bhopal and across Madhya Pradesh.

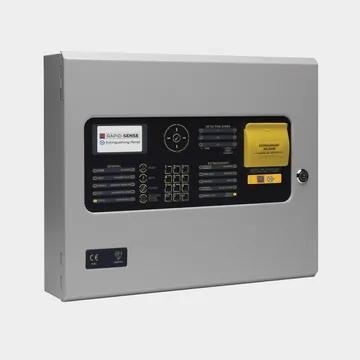

Conventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.

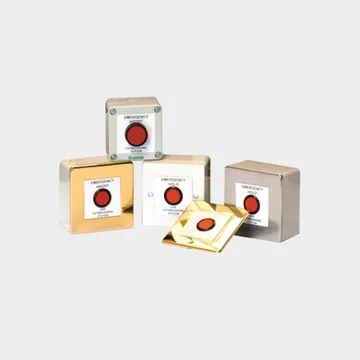

Abort switch for extinguishing systems, compatible with the Rapid-Sense control panel and complying with BS 7273-1 requirements.
Latching push button for manual release of an extinguishing system, compatible with the Rapid-Sense control panel and complying with EN 12094-3.

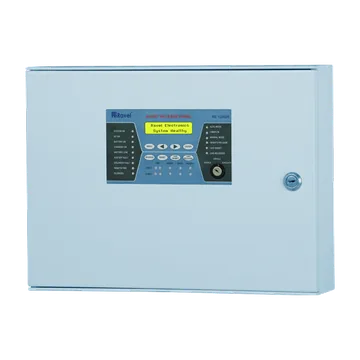

A microprocessor based 2 zone panel that detects a fire and releases a gaseous agent, with main and standby cylinder output and several release options.

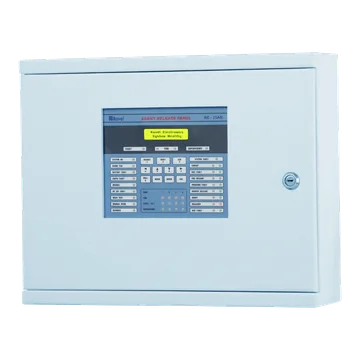

A microprocessor based 4 zone agent release panel with two release circuits and solenoid coil monitoring, which Ravel states is UL listed.
A 4 zone agent release panel with separate LED indication for each release circuit, which Ravel states complies with UL 864 (10th edition) and NFPA 72.

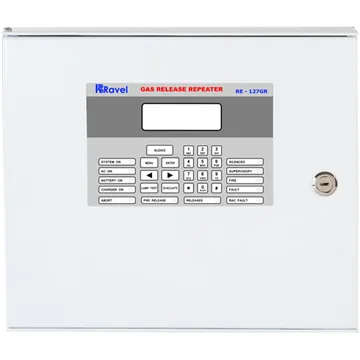

A repeater panel that shows all the parameters of the RE-120GR or RE-25AR agent release panel at a second location.
An RS485 driver module for the RE-25AR agent release panel, allowing up to 32 transceivers on the serial bus.
A converter that changes the RE-25AR panel's Ravel protocol to Modbus, for linking to SCADA, PLC or BMS systems.

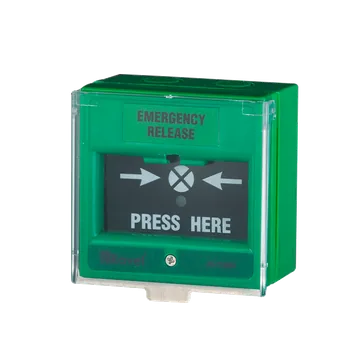

Plastic call points for agent release systems: green for manual emergency release and yellow for abort.

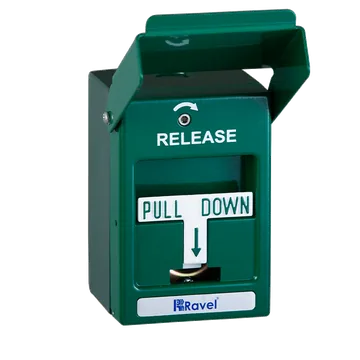

A painted die cast dual action pull station with a lift and pull action and a break glass cover, in green or yellow for agent release systems.
A compact XC360 series panel for one extinguishing sector, handling detection, evaluation and alarm for up to 126 addressable devices from the Cerberus FIT and Cerberus PRO ranges over C-NET.
The XC360 series single-sector panel for Sinteso peripherals over FDnet, with detection and alarm for up to 126 addressable devices on one loop.
The 19 inch rack variant of the XC1001-A for complex multi-sector extinguishing installations, with up to 16 panels in one housing.
A Sinteso 4-loop fire control panel with extinguishing control and an integrated operating unit for up to 504 addresses, in a Large housing with FBA terminal.

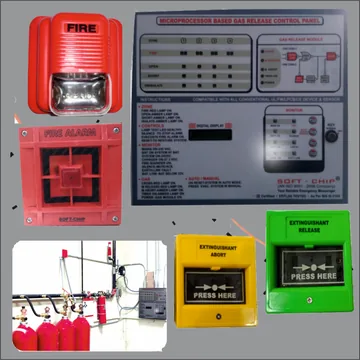

Microprocessor based panel that controls a gas flooding suppression system, with single or cross zone logic, a pre discharge warning and a 24 VDC gas release output. It includes programmable countdowns, manual abort and false release protection.
A remote extinguishing terminal for one sector, used as the primary terminal for the FC2040-CL or as an extra terminal.
A module bus card that adds single-sector or multi-sector extinguishing control to FC2020 and FC2040 panels in Comfort or Large housings.
Start with the size of the protected area and the detection logic, because the panel should release gas only when it is sure of a fire. Ravel offers 2 zone (RE-120GR) and 4 zone (RE-25AR, RE-26GR) agent release panels, the Ceasefire TI-002341 has 3 detection zones and 1 extinguishing zone, and the Soft-Chip microprocessor panel runs in single or cross zone mode, where a second detector must confirm the fire before release. For addressable systems, the Siemens Cerberus PRO XC361-ZA (C-NET) and XC3610-AA (FDnet) control one extinguishing sector with up to 126 addresses, the Sinteso FC2040-CL handles up to 504 addresses on 4 loops, the XCI2005-A1 card adds sectors to FC2020 and FC2040 panels, up to 16 sectors, and the XC1003-A 19 inch rack version holds up to 16 panels for complex multi-sector sites.
Next match the outputs to your cylinders and actuators. The Ceasefire panel drives solenoid or Metron actuators, with 3 sounder circuits of 700 mA, 4 relay outputs and a large LCD countdown timer. The Ravel RE-120GR has programmable main and standby cylinder outputs, the RE-25AR has 2 agent release circuits with solenoid coil monitoring, and the RE-26GR shows a separate LED for each release circuit, with logic to prevent accidental release. The Soft-Chip panel gives a 24 VDC gas release output with a pre discharge warning, programmable countdowns, manual abort and false gas release protection. Approvals listed by the makers include IS 2189:1999 for Soft-Chip, UL 864 and NFPA 72 for the Ravel RE-26GR as stated by Ravel, and EN 54-2, EN 54-4 and LPCB for the Siemens XC360 series panels.
Then plan the switches at the room door. An abort switch holds the release while someone checks a possible false alarm, and a manual release switch lets someone fire the system by hand. Ceasefire offers a manual abort switch (TI-002342, BS 7273-1) and a latching manual release switch (TI-002343, EN 12094-3) for its Rapid-Sense panel. Ravel offers green emergency release and yellow abort call points (RE-716MG, RE-716MY) and dual action lift and pull stations in green or yellow. The Siemens XT2001-A2 remote extinguishing terminal serves one sector, with up to five secondary terminals per flooding zone.
For monitoring away from the protected room, the Ceasefire panel has an RS485 link for up to 7 remote status indicators, the Ravel RE-127GR repeater panel shows all the parameters of the RE-120GR or RE-25AR at a second location, and the Ravel RE-25MB converter brings the RE-25AR onto Modbus for SCADA, PLC or BMS systems. FPS matches the panel to the cylinders, actuators and detectors of your suppression system, then installs, tests and maintains it.
