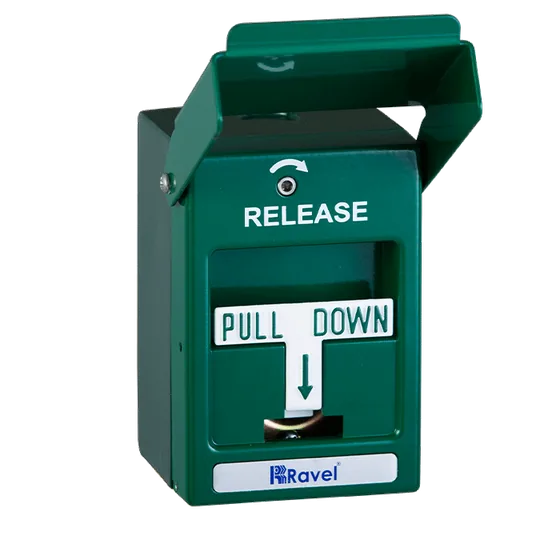

Dealer for RavelRavel Dual Action Manual Pull Station, Green or Yellow
A painted die cast dual action pull station with a lift and pull action and a break glass cover, in green or yellow for agent release systems.
- Dual action, lift and pull, with break glass cover
- Green (RE-716P1TLP(G)) or yellow (RE-716P1TLP(Y)) version
- Painted die cast housing with corrosion inhibited surface
- 10 A, 120 V AC snap action switch and 4 position terminal block
- Hex screw or key lock access, single gang mounting
Specifications
Specifications
| Specification | RE-716P1TLP(G) | RE-716P1TLP(Y) |
|---|---|---|
| Construction Material | Painted Die Cast housing. | 14 Ga plated steel black plate. | Corrosion inhibited surface. | Terminal block ( 4 position). | Single gang mounting. | 10A ,120V AC snap action switch(SPST). | Painted Die Cast housing. | 14 Ga plated steel black plate. | Corrosion inhibited surface. | Terminal block ( 4 position). | Single gang mounting. | 10A ,120V AC snap action switch(SPST). |
| Electrical Switch | 10A@120VAC | 10A@120VAC |
| Weight | 15.5 oz/ 420 grams | 15.5 oz/ 420 grams |
| Width | 3.200 in | 3.200 in |
| Length | 4.750 in | 4.750 in |
| Depth | 0.875 in | 0.875 in |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
