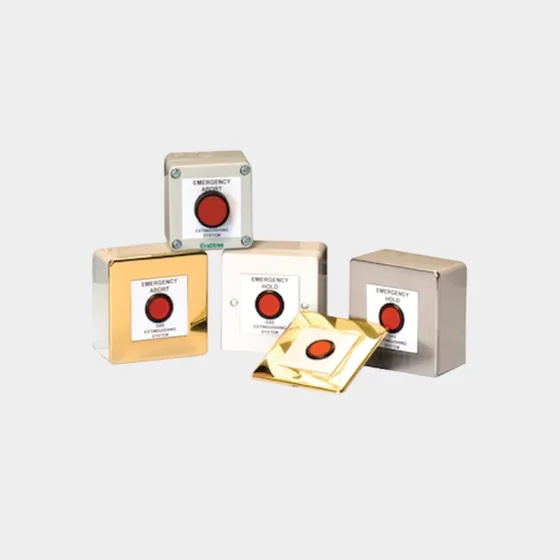

Authorised distributor for CeasefireAbort switch for extinguishing systems, compatible with the Rapid-Sense control panel and complying with BS 7273-1 requirements.
| Specification | TI-002342 |
|---|---|
| Type | Conventional |
| Model | TI-002342 |
| Dimensions | Overall 87mm x 87mm x 41mm, Back box 87mm x 87mm x 29mm |
| Environmental Class | Indoor 0ºC to 40ºC |
| Humidity | 95% max |
| End-of-Line Resistance | 6800 Ohms |
| SW#1 Active Resistance | 470 Ohms |
| Maximum Operating Voltage | 30VDC |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Conventional fire alarm panels in 2, 4, 8, 12, 16, 24 and 32 zone sizes, approved to EN 54-2 and 4. The 8 zone and larger panels can be networked, up to 8 control panels, and work with repeater or remote display units.
Addressable fire alarm panels in 1 loop, 1 to 2 loop and 1 to 4 loop versions, each loop taking up to 240 addressable detectors and devices. Approved to EN 54-2, EN 54-4 and EN 54-13, with 200 fire zones per panel and up to 2000 zones over the Intelli-Sense-NeT network.
Addressable panel that expands from 2 to 8 loops with plug-in loop driver boards, taking up to 240 devices per loop, offered for standard (ST) or fault tolerant (FT) networks. Approved to EN 54-2, EN 54-4 and EN 54-13.
Conventional control panel for gas suppression, with 3 detection zones and 1 extinguishing zone that can drive solenoid or Metron actuators. A large LCD countdown timer shows the time to release.
Repeater panel that shows fire and fault status for 12 zones away from the main panel, with controls enabled by key switch or code entry. It has its own 1.25 A power supply with battery backup.
Remote display for conventional fire alarm systems with a 4 x 40 character backlit LCD and full system control. It runs from a 24 V DC supply and has fire and fault outputs.
A microprocessor based 2 zone panel that detects a fire and releases a gaseous agent, with main and standby cylinder output and several release options.
A microprocessor based 4 zone agent release panel with two release circuits and solenoid coil monitoring, which Ravel states is UL listed.
A compact XC360 series panel for one extinguishing sector, handling detection, evaluation and alarm for up to 126 addressable devices from the Cerberus FIT and Cerberus PRO ranges over C-NET.
The XC360 series single-sector panel for Sinteso peripherals over FDnet, with detection and alarm for up to 126 addressable devices on one loop.
Microprocessor based panel that controls a gas flooding suppression system, with single or cross zone logic, a pre discharge warning and a 24 VDC gas release output. It includes programmable countdowns, manual abort and false release protection.
